Portable Pneumatic Vacuum Lifting Tool

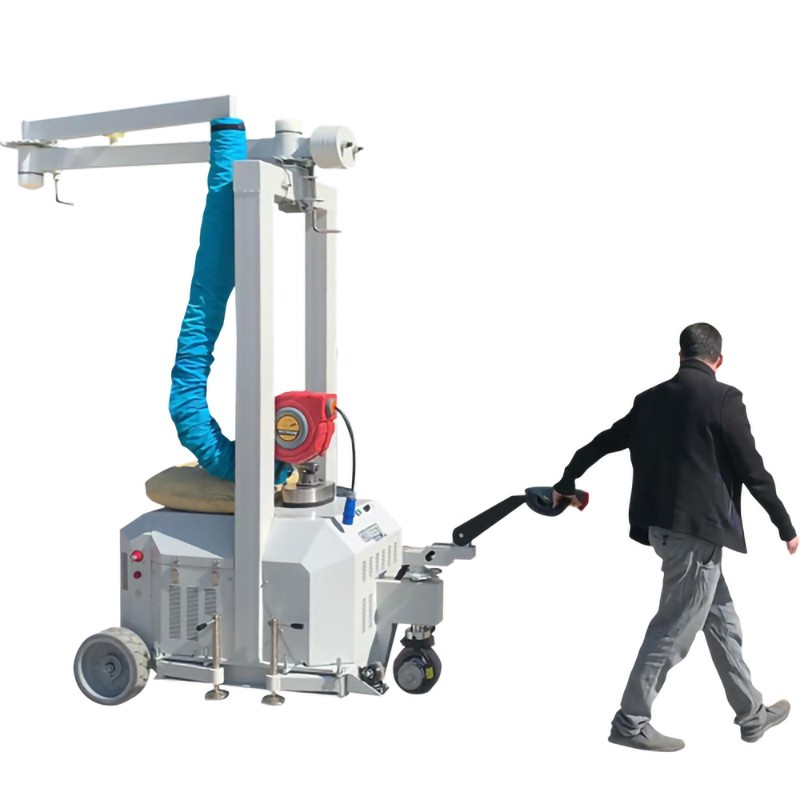

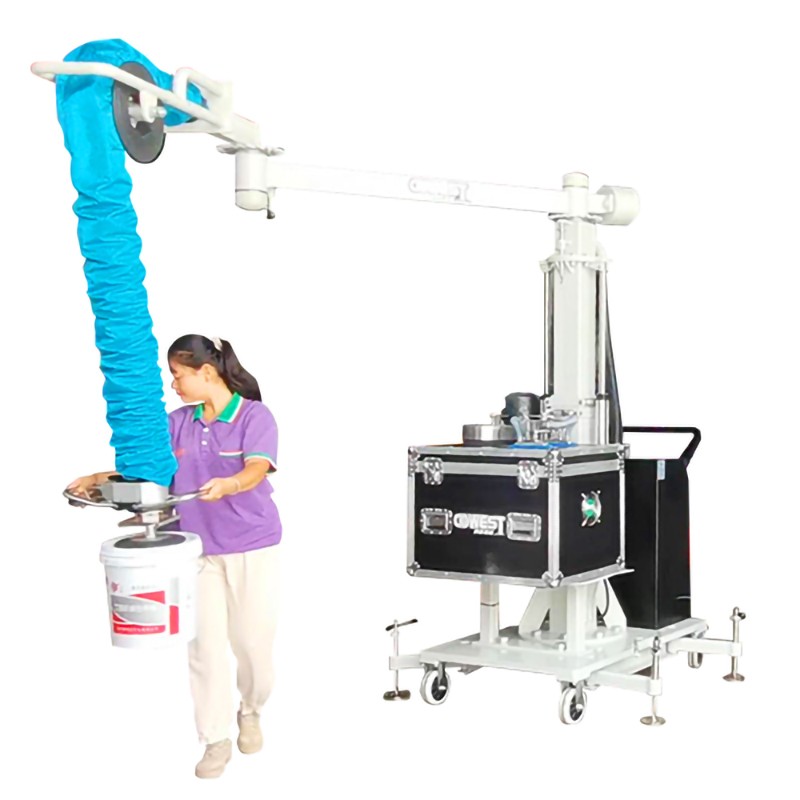

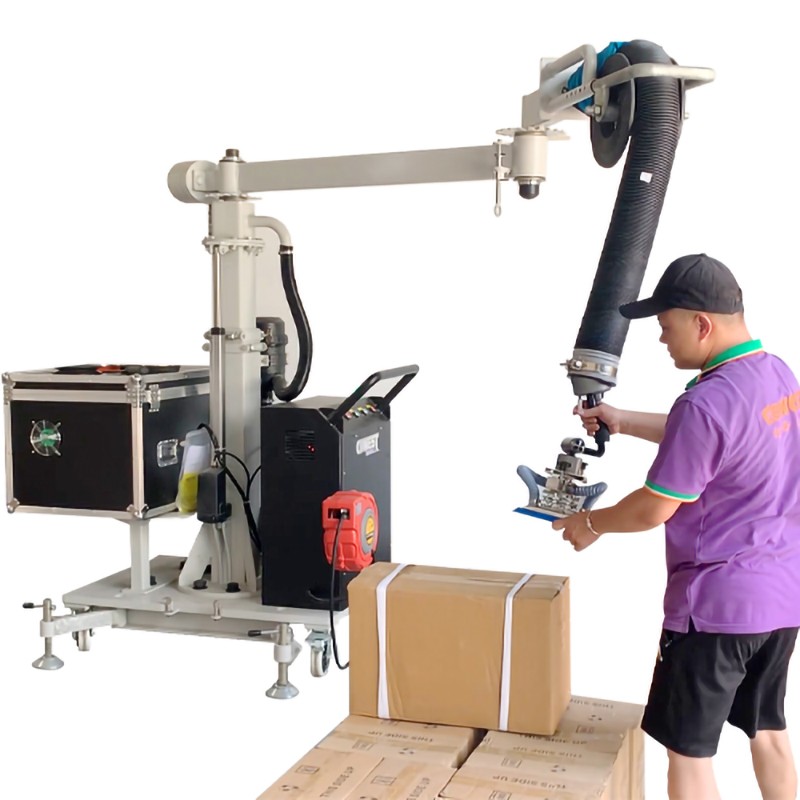

This equipment combines a suspension system with a pneumatic vacuum lifter and is equipped with a wheeled mobility system, allowing it to be used in multiple different areas and enhancing product utilization. Additionally, it can be configured with electric or manual propulsion according to customer requirements, as well as optional features such as a height-adjustable column. Even in low-ceilinged or confined spaces, this device can be utilized. It comes with its own counterweight, allowing for standalone use without the need for additional installation. This makes it simple and convenient to operate. It can be paired with pull-handle or hand-grip pneumatic lifter handles to grasp a variety of different weight workpieces.

EMAIL

Portable Pneumatic Vacuum Lifting

Specification

Model

Manual Propulsion MD-ESM

Manual Propulsion MD-SG

Electric Propulsion AD-ESM

Electric Propulsion  AD-SKG

Suspension Support System

Fixed/Telescopic Column

Fixed/Telescopic Column

Fixed/Telescopic Column

Fixed/Telescopic Column

Max Load Capacity

45kg

60kg

45kg

60kg

Max Lifting Height

1700mm

1700mm

1700mm

1700mm

Overall Height

(Fixed / Telescopic)

2800mm/2100-2750mm

2800mm/2100-2750mm

2800mm/2100-2750mm

2800mm/2100-2750mm

Max Boom Length

3m

3m

3m

3m

Operating Power

2.2kW

3.0kW

3.0kW

3.8kW

Traveling Method

Manual Propulsion

Manual Propulsion

Electric Propulsion

Electric Propulsion

Max Traveling Speed with No Load



5.5km/h

5.5km/h

Battery Capacity

2* 12V55Ah

Deep Cycle Battery

4* 12V100Ah

Deep Cycle Battery

2* 12V55Ah

Deep Cycle Battery

4* 12V100Ah

Deep Cycle Battery

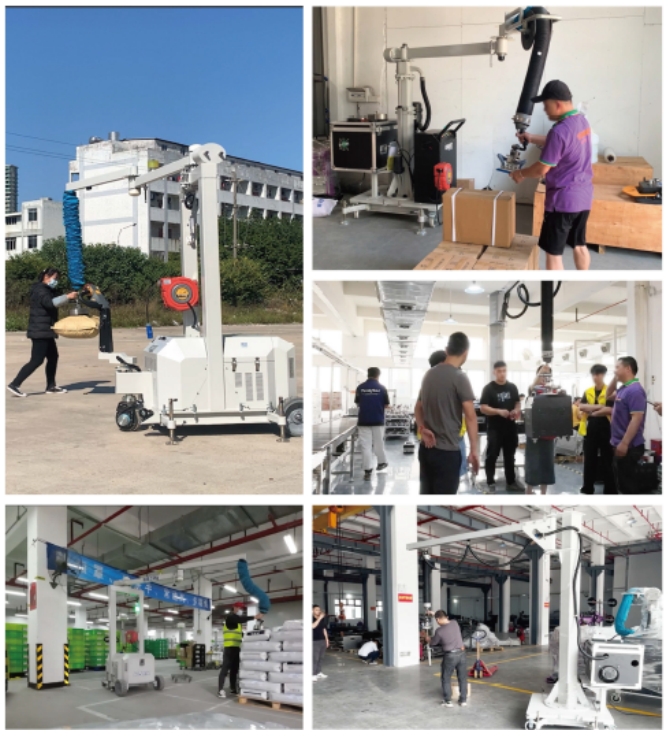

Application of portable Pneumatic Lifting Tool
