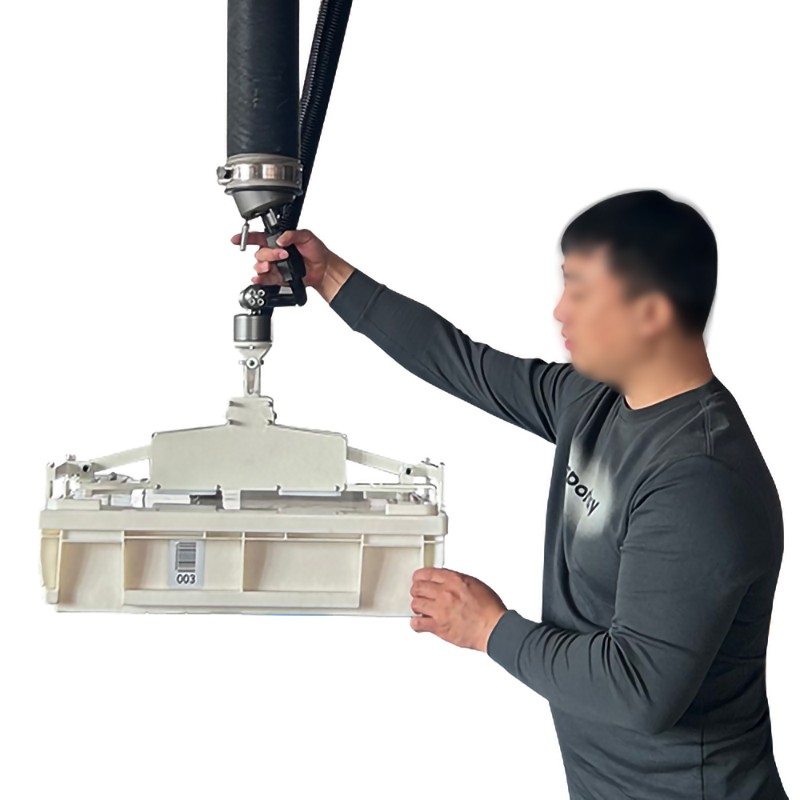

The ESM pneumatic vacuum lifter handle is made of a lightweight, integrated aluminum and plastic cast, making it the most compact and convenient model in the series. It is designed for one-handed
operation with sensitive air intake control. The handle can be flipped 90° and rotated 360° without limit, and can be equipped with hook-style grippers for special workpieces.
This handle is flexible and lightweight, allowing for quick movement and handling of workpieces. With a maximum lifting height of 1700mm, it is
suitable for the transportation of lightweight and small-sized workpieces up to 50kg.
Specification
Model | ESM25 | ESM35 | |
Max Load Capacity | 25kg | 35kg | |
Lifting Height | 1700mm | 1700mm | |
Flow Rate | 40m³ Vacuum Pump | 60m³ Vacuum Pump/2.2kwFan | |
workpieces that can be suctioned (hooked)II | Cardboard Boxes, Drums, and Other Custom Suction Cups | Cardboard Boxes, Drums, and Other Custom Suction Cups | |
Suction Cup Head Configuration

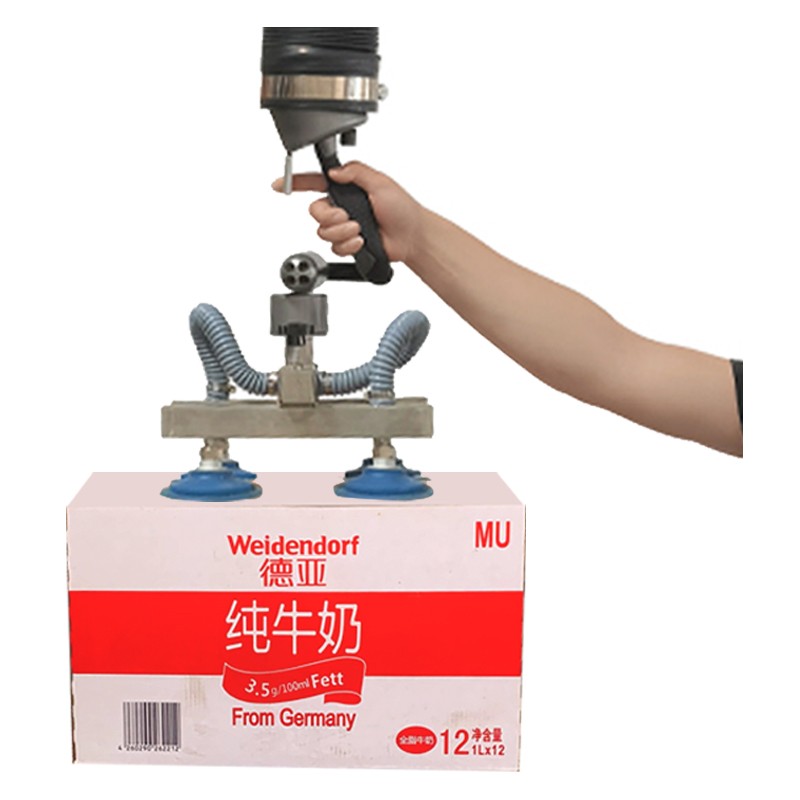

| Cardboard Box /Case | Cardboard Box Suction Cups SFD / HB Series | Cardboard Box Suction Cups SFD / HB Series |

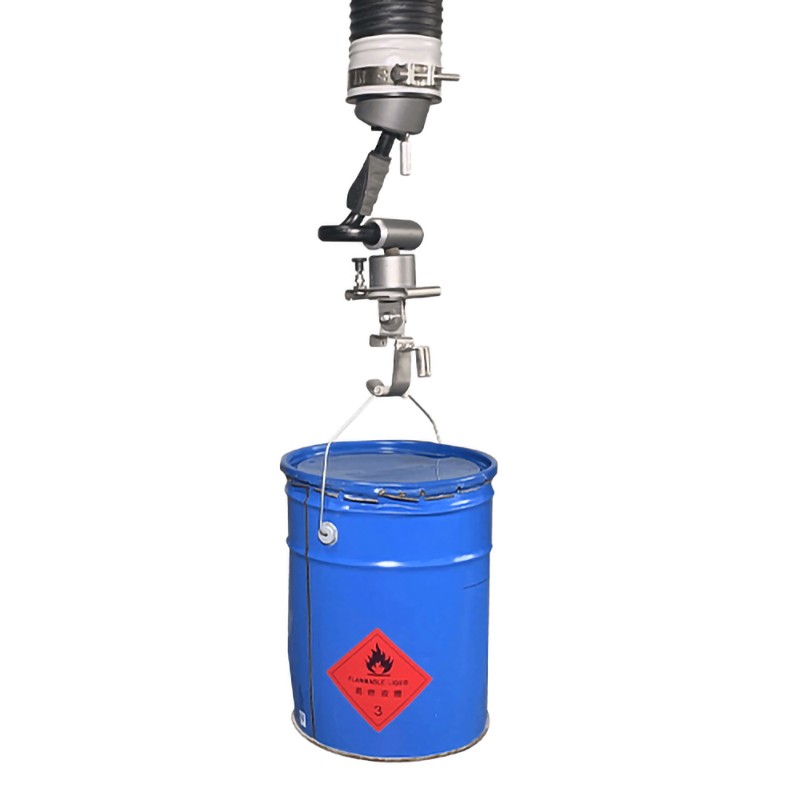

Drummed Products | Stainless Steel Hooks SHP Series / Other Suction Cups | Stainless Steel Hooks SHP Series / Other Suction Cups | |
Other shaped products | Customizable | Customizable |
