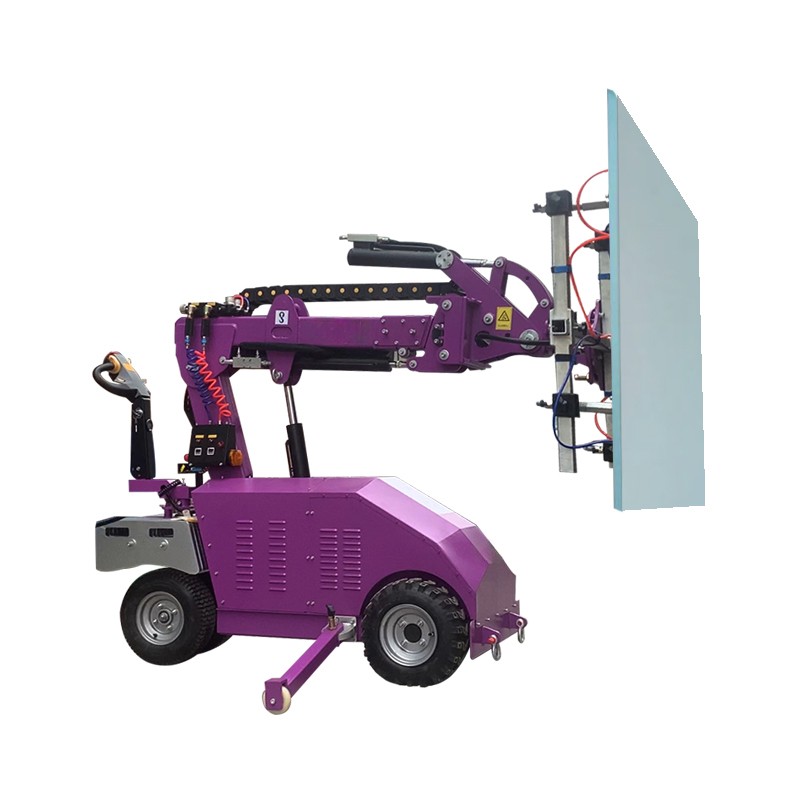

The VSR500 is a medium and small-sized glass installation vehicle capable of carrying a maximum load of 500kg. It features a front-wheel drive axle and is equipped with hydraulic controls for powerful and precise operation , easily handling rough construction site terrains. It is suitable for the installation of exterior glass, stone, aluminum alloy, and other decorative materials for villas, high-rise buildings, and similar structures.
Main Functions
●Equipped with electric front-wheel drive for mobility and electric vacuum grabbing capabilities.
● The boom's lifting and extension are controlled by electric hydraulic systems.
● The suction cup frame can be flipped and rotated electrically and ydraulically (manual rotation is an optional feature).
● The suction cup frame allows for manual side twisting and fine-tuning of horizontal movement with electric adjustments.
● All control actions are integrated into a wired remote control system.
● The vehicle is equipped with multiple safety features including vacuum alarm, battery level alarm, charging protection,
anti-tip device, automatic braking,emergency stop, and overload alarm.
VSR-500OR Specifications
Model | VSR-5000R |
Max Working Height | 3.5M |
Max Lifting Capacity | 500 kg |
Max Suction Panel Size Reference (Considering Panel Thickness) | 6*3M |
Unladen Traveling Speed | 0-4km/h |
Rated Power | 2.2kw |
Drive Mode | 24V Motor Front Drive |
Climbing Ability | 15% |
Vacuum Suction Cup Configuration | 6 suction cups with Φ290mm |
Vacuum System | Dual Pump Dual System |
Vacuum Safety Alert | Buzzer alarm, digital & mechanical pressure gauge |
Forearm Telescopic Distance | 600mm |
Suction Cup Rack Flipping Angle | Electric rotation from 0° to 180° |
Suction Cup Rack Rotation Angle | Electric Infinite Rotatio |
Suction Cup Rack Horizontal Movement Distance | ±5 0 m m |
Suction Cup Rack Side Twist Angle (Electric) | 90°left and right |
Battery Capacity | DC12V*2*100Ah |
Charging Voltage | AC220V/AC110-240V |
Vehicle Endurance | 4h-8h |
Dimensions (L*W*H) | 2012*800*1920mm |
Weight | 1136kg |
