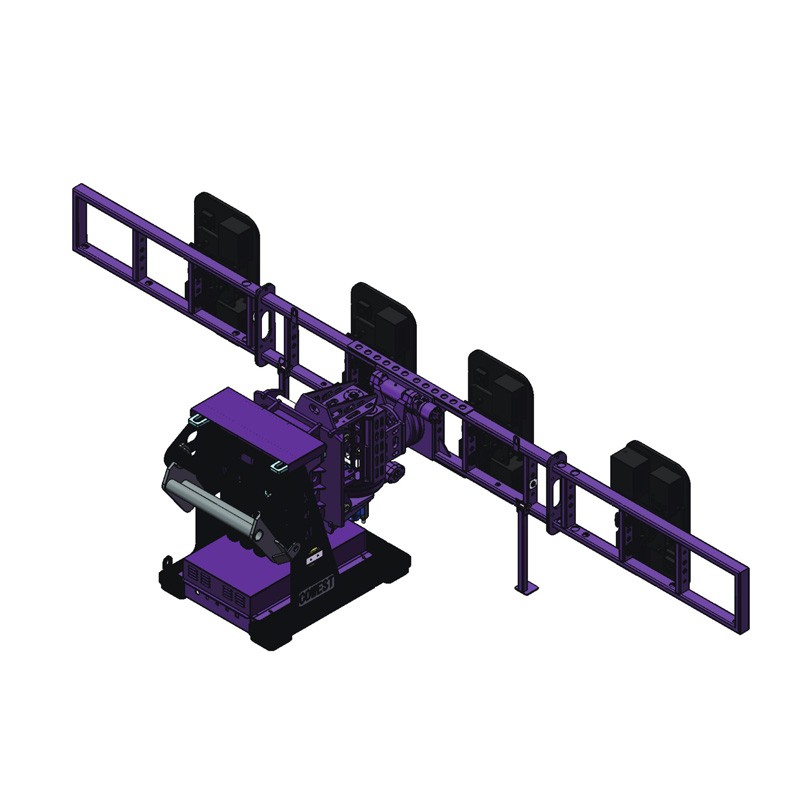

Multi-dimensional Glass Installation Head

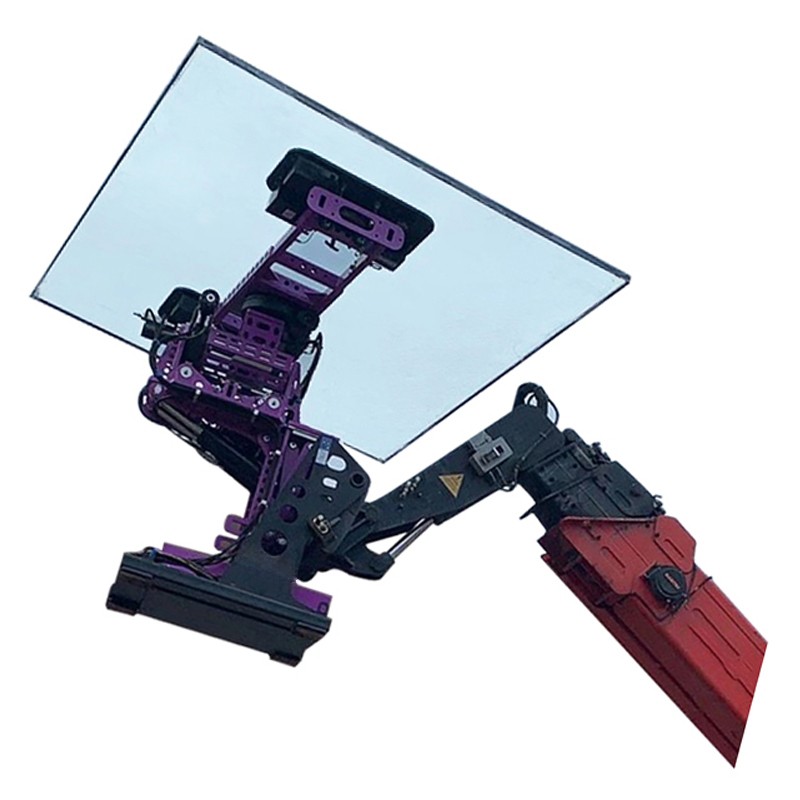

The product is primarily installed at the end of the arms of construction vehicles such as forklifts and aerial work platforms, serving as a vehicle-specific tool for glass installation. The installation head features an
independent hydraulic control system, as well as circuits and a vacuum control system. It enables wireless
remote control for gripping, flipping, rotating, lateral twisting, and minor telescopic adjustments, offering flexibility and maneuverability. It seamlessly integrates with construction vehicles such as forklifts, enabling glass installation at higher floors. It thrives in harsh construction site environments. Different tools can be designed according to the requirements of different construction vehicles and customers.

EMAIL

Glass Installation Head

Model Specification

Model

VSR800

VSR1200

VSR1500

Max load



800kg

1200kg

1500kg

Rated operating voltage



DC12V

DC12V

DC24V

Rated power



1.5KW

1.5KW

2.5KW

Hydraulic Working Pressure



16Mpa

21Mpa

21Mpa

Wireless Remote Control

The extension distance

of the head



500mm

300mm

250mm

Horizontal movement distance

of the suction cup frame



±75mm

±75mm

±75mm

Suction Cup Rack Flipping Angle

to 135°

to 135°

to 135°

Horizontal Movement Distance of the Suction Cup Rack

 Left and right, each 90°



 Left and right, each 90°



  Left and right, each 90°



Vertical Movement Distance

of the Suction Cup Rack

  ±100mm

±100mm

±100mm

Suction Cup Rack Rotation Angle

 Infinite360°

 Infinite360°

  Infinite360°

Vacuum suction force

800kg

1200kg

1500kg

Number of suction cups

6PCS

8PCS

4PCS

Suction cup dimensions

D400mm

D400mm

450*850mm

Vacuum system

Dual-pump

Dual-system

Dual-pump

Dual-system

Dual-pump

Dual-system

Vacuum Safety Alert



Buzzer alarm, digital

display & mechanical

pressure gauge

Buzzer alarm, digital

display & mechanical

pressure gauge

Buzzer alarm, digital

display & mechanical

pressure gauge
