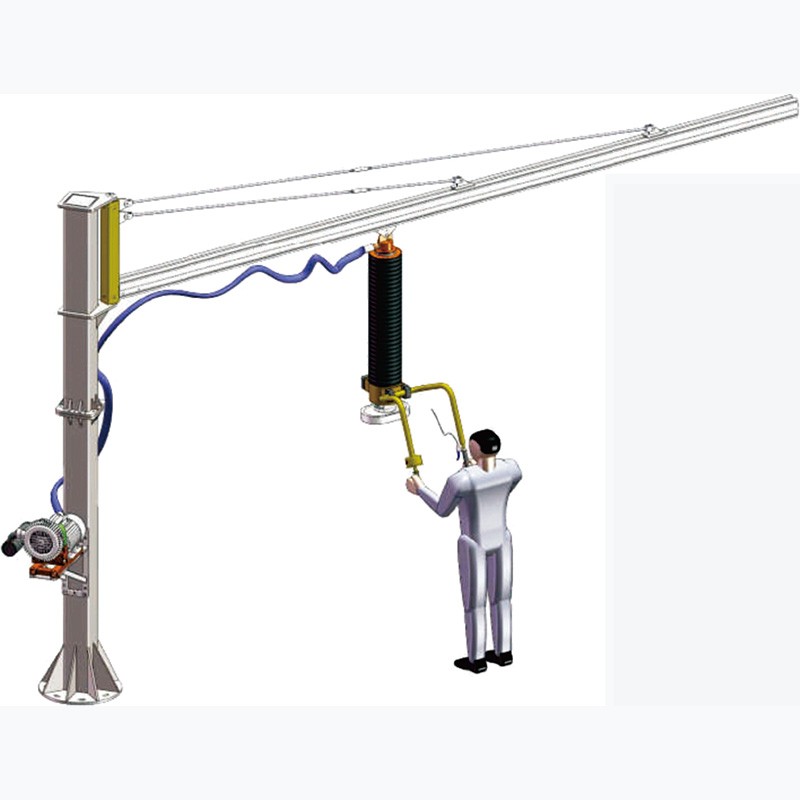

Column Jib Crane Suspension System Equipment

Maximum Load Capacity: 250 kgs
Jib Length: Recommended maximum length is within 5.5 meters Column Overall Height: Determined by the height under the beam;
Beam Height: Customizable according to customer requirements (recommended not to exceed 4000 mm)
Traveling Method: Manual (pull force ratio of 1:100 kgs)

Column Jib Crane Suspension System Equipment

Sspecification

Model	WJC-Height/Length-150K	WJC-Height/Length-250K
Column Height	3.0m/ 3. 5m / 4. 0m/ 4.5m	3.0m/ 3.5m/ 4.0m/4.5m
Jib Length	2.5m/ 3.0m/ 3.5m/ 4.0m	2.5m/ 3.0m/ 3.5m/ 4. 0m
Underside Net Height of the Guide Rail	2.5m/ 3.0m/ 3.5m/ 4.0m	2.5m/ 3.0m/ 3.5m/ 4. 0m
Rotation Angle	180°／270°／360°	180°／270°／360°
Load Capacity	125kg	250kg
