VSR600M is a multi-functional installation vehicle developed by our company, suitable for
various working conditions at construction sites. The installation head can be quickly assembled
and disassembled. Depending on the working conditions, it can be equipped with suction cup

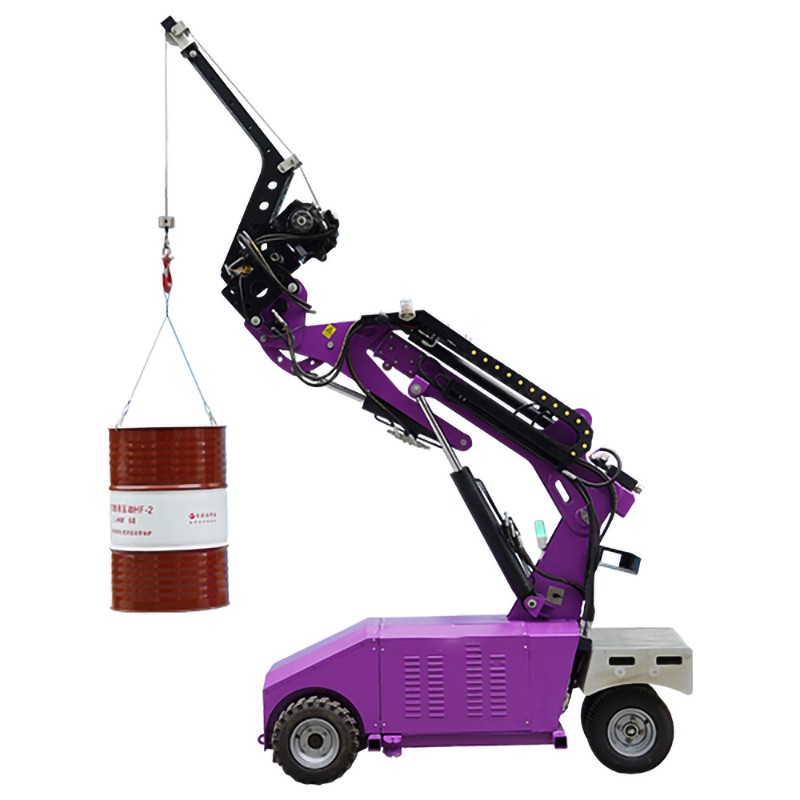

installation heads, hydraulic winches, hydraulic forks, hydraulic clamps, and mobile high-
pressure water spray heads, among other auxiliary devices.

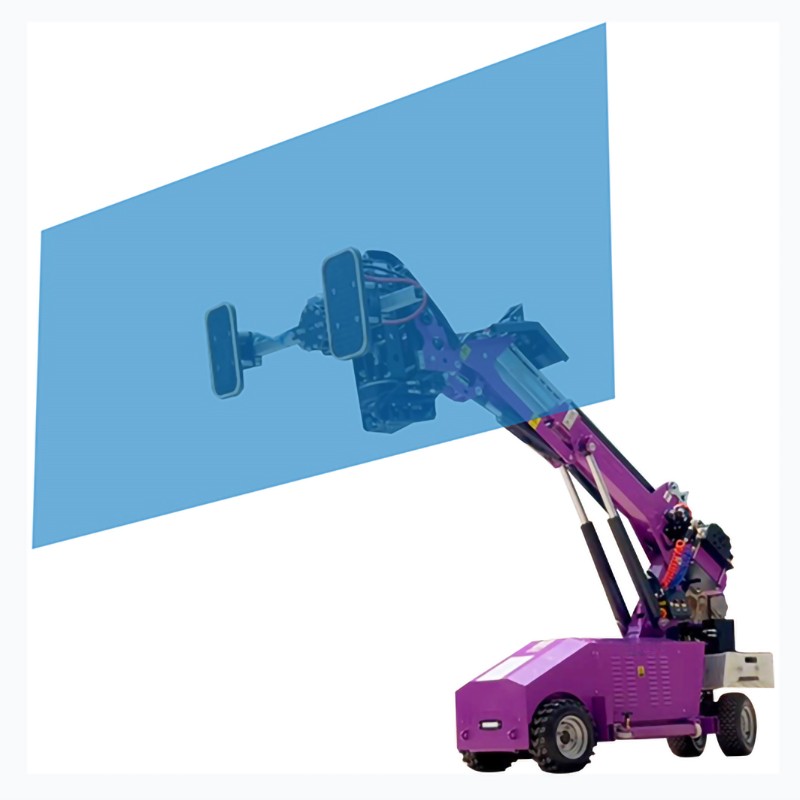

● The suction cup mounting head can be electrically flipped, rotated, twisted sideways, and horizontally moved.
● The suction cup mounting head, fork teeth, and w inch hook attachments can be freely interchanged.
● Equipped with both wired and wireless remote co ntrols, which can be selected for use based on the working conditions.
● Enhanced with multiple safety features including v acuum alarm, battery level alarm, charging protecti on, anti-tip device,
● Automatic braking, emergency stop, overload alar m, and other protective measures.
VSR-600M Specifications
Model | VSR-600M Multifunctiona | ||
Suction Cup Rack Status | Fork Status | Winching Status | |
Max Operating Height | 3.6m | 3.6N | 36M |
Max Load Capacity | 600kg | 600kg | 600kg |
Rated Powe | 2.2kw | 2.2kw | 2.2kw |
Driving Method | 24V Motor Front Drive | 24V Motor Front Drive | 24v Motor Front Drive |
Battery Capacity | 2*Dc12v150Ah | 2*Dc12v150Ah | 2*Dc12v150Ah |
Charging Voltage | Ac110v-220v | Ac110v-220v | Ac110v-220v |
Travel Speed | 0-4km/h | 0-4km/h | 0-4km/h |
Climbing Ability | 15% | 15% | 15% |
Forearm Telescopic Distance | 650mm | 650mm | 650mm |
Suction Force | 600kg | Max Distance Between Forks | 1m |
Vacuum Pump | Dual Pump Dual System | Max Length of Forks | 1060mm |
Suction Cup Rack Flipping Angle | Hydraulic Flip 0⁰-135° | Fork Rack Height | 1m |
Suction Cup Rack Rotation Angle | Hydraulic Control Infinite Rotation | ||
Horizontal Movement Distance of | ±50mm | ||
Suction Cup Rack Lateral Twist Angle | Electric Left and Right 90° | ||
Overall Dimensions (L*W*H) | 2380*1625*800mm | 2380*1625*800mm | 2380*1625*800mm |
