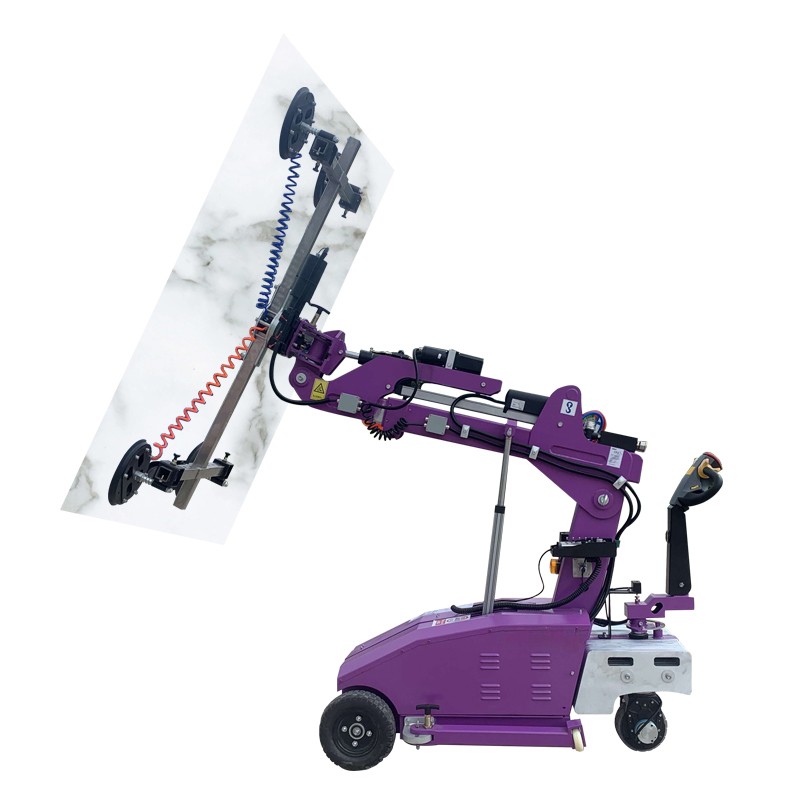

400kg Electric glass installation vehicle VSR-400mini

The VSR-400MINI is the smallest model in the glass installation vehicle series with a maximum load capacity of 400kg.It is agile and maneuverable, commonly used for indoor installation of glass panels and other non-airtight partitions during interior decoration. It can electronically adjust installation angles,
saving time and effort, providing convenient operation, improving work efficiency, and reducing labor costs.

Electric Glass Vacuum Suction Cup Installation Vehicle

Main Functions

●Electric walking and electric vacuum gripping.

● Electric lifting and extension of the main arm.

● Electric flipping and rotation of the suction cup holder.

● Manual lateral twisting of the suction cup holder, with electric lateral movement fine adjustment of t he main arm.

● All control actions are integrated with wire d remote control.

●Equipped with multiple protection devices i ncluding vacuum alarm, battery alarm, charg ing protection, anti-rollover

device, automatic braking, emergenc y stop, and overload alarm.

VSR400-MINI Specifications

Model	VSR400-MINI
Max Working Height	3M
Max Lifting Capacity	400kg
Max Suction Panel Size Reference (Considering Panel Thickness)	5*3M
Unladen Traveling Speed	0-4km/h
Driving Mode for Traveling	24V Motor Rear Drive
Driving Motor Power	750w/1.5kw(optional)
Climbing Ability	15%
Vacuum Suction Cup Configuration	6 suction cups with Φ290mm
Vacuum System	Dual Pump Dual System
Vacuum Safety Alert	Buzzer alarm, digital & mechanical pressure gauge
Forearm Telescopic Distance	500mm
Flipping Angle	Electric rotation from 0° to 180°
Suction cup rack rotation angle	Electric Infinite Rotatio
Horizontal movement distance of the upper arm	±5 0 m m
Manual Lateral Twist Angle	22° left and right
Battery Capacity	DC12V280Ah
Charging Voltage	AC 220V/110V~240V
Vehicle Endurance	4h-8h
Min. Equipment Size	23007001400mm
Weight	771kg
