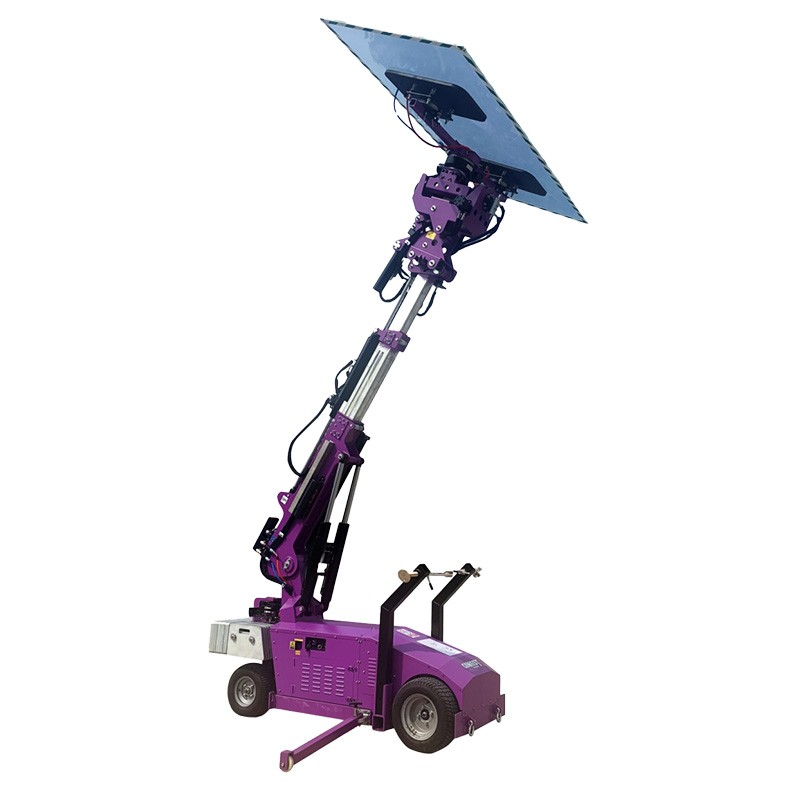

800kg Electric glass installation vehicle VSR-800LA

SR800LA is an upgraded model based on the market feedback
and years of application of the
VSR800LA model. It boasts the most comprehensive functionality among current models, with the
most sensitive adjustment distance and scheduling capabilities. It
can handle various challenging glass installations with ease. With a maximum load of 800kg, it can address the majority of issues encountered during building glass installations. Additionally, it is capable of handling the installation and transportation of other commonly used building materials such as prefabricated concrete panels, marble slabs, and metal decorative panels.

Electric Glass Vacuum Suction Cup Installation Vehicle

Main Functions

- Electric front-wheel drive with solid large-surface tires for strong traction.

- Electric hydraulic control for lifting and extension of the main arm.

- Electric hydraulic flipping and rotation of the suction cup rack.

- Electric lateral twisting and electric lateral movement fine adjustment of the suction cup rack.-All control actions

integrated with both wired and wireless dual remote control.

- All movement adjustments can achieve precision within millimeter-level range control, enabling precise positioning.

- The suction cup rack can be vertically adjusted and equipped with directional assistance.

- Walking can be directly controlled via remote control, enabling fully remote operation over long distances.

- Equipped with multiple protection devices including vacuum alarm, battery alarm, charging protection, anti-rollover

device, automatic braking,emergency stop, and overload alarm.

VSR-800LA Specifications

Model	VSR-800LA
Max working height	4.6m
Max lifting weight	800kg
Max reference size of suction plate (considering plate thickness)	7*3M
Unladen Traveling Speed	0-4km/h
Rated Power	2.2 kw
Drive Mode	24V Motor Front Drive (with directional assistance, wireless remote control)
Climbing Ability	12%
Suction Cup Configuration	500800mm suction cup 2
Vacuum System	Dual Pump Dual System
acuum Safety Alert	Buzzer alarm, digital display & mechanical pressure gauge
Vehicle Endurance	4h-8h
Forearm Telescopic Distance	1150mm
Suction Cup Rack Flipping Angle	Electric Flip 0°-180°
Suction Cup Rack Rotation Angle	Hydraulic Control Infinite Rotation
Horizontal Movement Distance of the Suction Cup Rack	±5 0 mm
Vertical Movement Distance of the Suction Cup Rack	±75mm
Left and Right Swivel Angle of the Suction Cup Rack	Electrically Controlled Left and Right 90°
Battery capacity	DC12V2150Ah
Charging Voltage	AC220V/AC110-240V
Vehicle Endurance	4h-8h
Overall Dimensions (L * W * H)	31001620880*mm
Weight	2190kg
