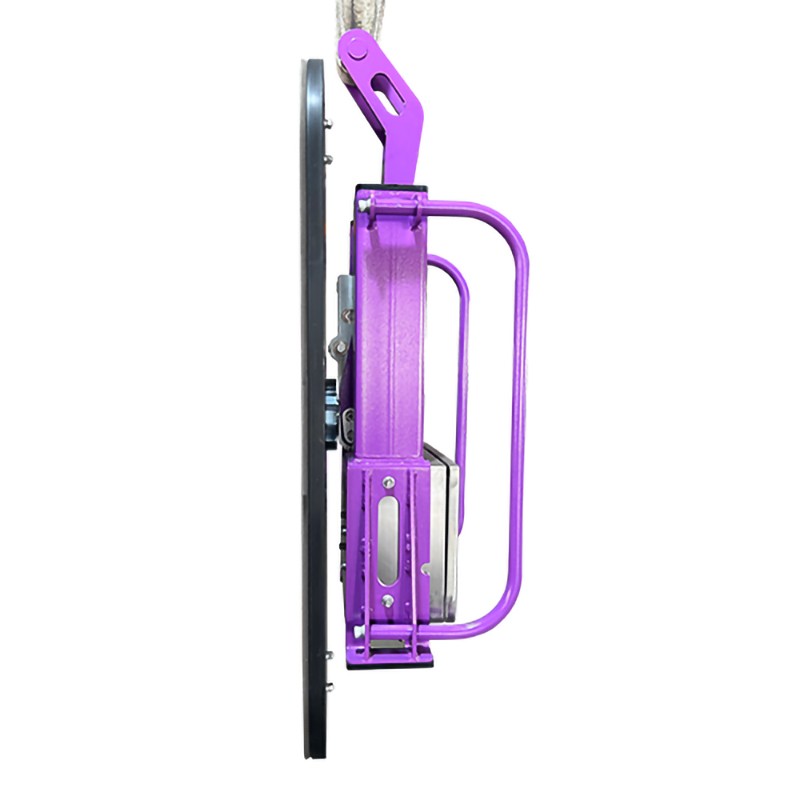

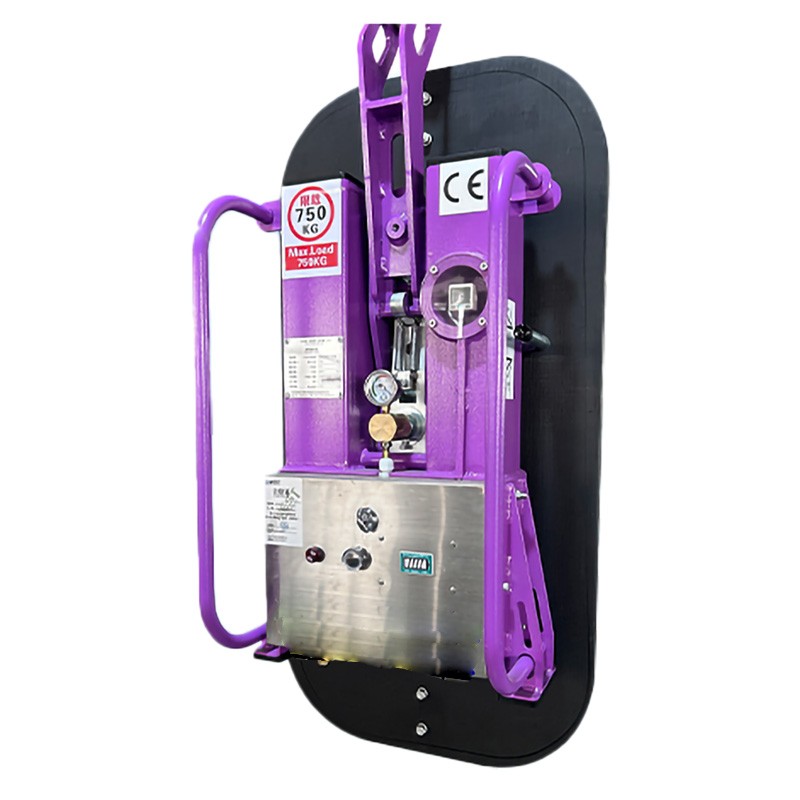

Glassboy Single Suction Cup Glass Vacuum Lifter

- Compact size; maximum load capacity of
750kg
- Suction cups made of imported aluminum
alloy, precision processed
- Single large suction cup, suitable for a
variety of glass sizes
- Equipped with an independent small trailer
for easy transportation and transfer
- Stainless steel waterproof electrical box
design, protection level IPX2, battery-driven,
suitable for indoor and outdoor use
- Equipped with intelligent vacuum
compensation, low energy consumption
- Can be operated through simple mechanical
structure
- Manual flipping of 90 degrees and rotation
of 360 degrees

EMAIL

Single Suction Cup Glass Vacuum Lifter

Standard Configuration

Equipped with vacuum alarm,

battery alarm,

charging protection,

vertical adjustment,

extended lifting hook for protection.


Model Specification

Name

Specification Parameter Description

Model

Glass boy-1-500kg

Glass boy-1-750kg

Rated Load
(T)

500kg

750kg

Overall Power
(KW)

0.06KW

0.06KW

Power Supply
(V)

DC12V

DC12V

Working Environment

-20~40°C

-20~40°C

Battery

DC12V12AH(1unit)

DC12V16AH(1unit)

Charging Power Supply
(V)

AC110-220V
50HZ/60HZ

AC110-220V

50HZ/60HZ

Suction Cup Specifications

400mmx800mm

500mmx1000mm

Industrial Control

Electric control total bearing (waterproof type)

Electric control total bearing (waterproof type)

Control Mode

Manual

Manual

Rotation Angle

360°

360°

Flipping Angle

90°

90°

Exterior Dimensions

800*400*240 mm

1000*500*240mm

Weight

70kg

75kg
