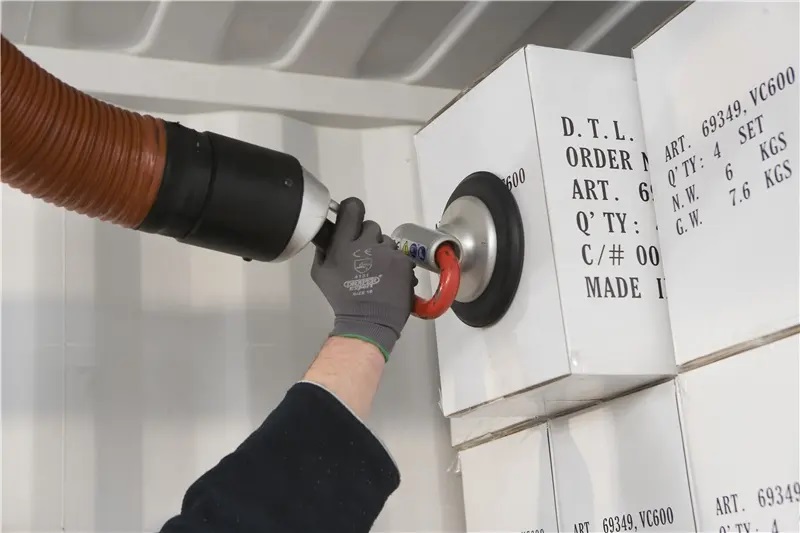

The Universal Vacuum Gripper is a perfect fit for your storage needs. With this vacuum gripper, you can keep your bags and boxes secure while you're on the go. You can even use it to store items in your garage or basement!
The Universal Vacuum Gripper has a strong suction cup that keeps the bag or box from slipping off the surface. It's easy to install and works great for sealing any bag or box.
The Universal Vacuum Gripper is a great addition to any household!
The universal vacuum gripper for bags and boxes is a powerful tool for handling your products. It can be used in a wide variety of situations, from packaging to transportation, and it can be used with almost any kind of product.
This is a great option for those who want an efficient way to handle their goods without the need for large amounts of manpower. This device is also very easy to use and maintain, which means that you won't have to hire a full-time staff just to keep this machine running smoothly.
The device itself is made from high-quality materials that will ensure its longevity and durability over time. The suction cup vacuum gripper will hold onto your goods securely until they are ready to be moved or shipped off somewhere else where they need to go next!
Our solutions can be optimized for different customer requirements and environments. With a series, with columns of suckers and grips, viboocan grasp, lift and carry almost anything, packages include: parcels, luggage, sacks, bags, sheets, glass, casks, barrels, bottles, food, stones, the Windows, etc.
Model | KSIB 100-30 | KSIB 100-40 | KSIB 100-50 | KSIB 100-60 | KSIB100-80 | KSIB100-100 | KSIB100-120 | KSIB100-180 |
Tube Length | 2500mm-4000mm | |||||||
Suction Capacity | 30kg | 40kg | 50kg | 60kg | 80kg | 100kg | 120kg | 180kg |
Tube Dia. | 100mm | 120mm | 140mm | 160mm | 180mm | 200mm | 230mm | 250mm |
Lifting Speed | 1m/s | |||||||
Suction Dia.&Qty. | TBD | |||||||
Vacuum Power | 2200W | 3000W | 5500W | |||||
A-crane | 3800mm-4150mm (to be customized) | |||||||
B-Rocker Arm | 3000mm-4000mm | |||||||
C-Lifting Stroke | 0 to 1250mm-0 to 2500mm (to be customized) | |||||||
Rotation | 230° | |||||||
Voltage | 380V 50HZ |
Main Features
User friendly
A vacuum tube uses suction to both grip and lift the load in a single movement. The control handle is easy for the operator to use and feels almost weightless. With a bottom swivel, or an angle adaptor, the user can rotate or turn the lifted object as required.
* Good ergonomics means good economics
Long lasting and safe, our solutions provide many benefits including reduced sick leave, lower staff turnover and better staff utilization - usually combined with higher productivity.
* Easy installation and maintenance

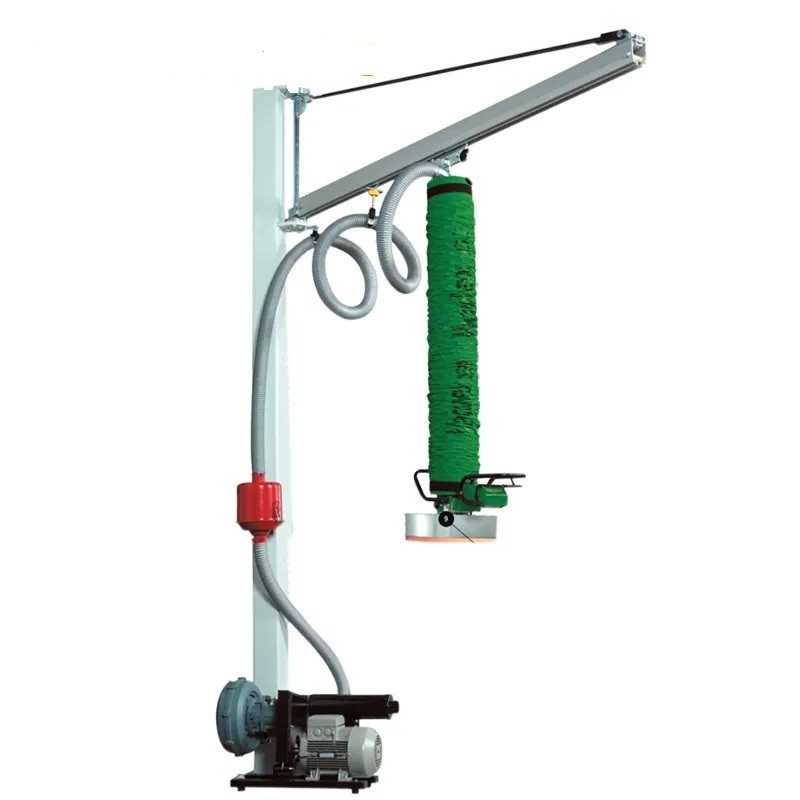

The power source can either be an electric pump or pneumatic vacuum pump. The system is normally installed on a jib or a lightweight bridge crane. The installation is simple and is adapted to your specific lifting needs. Our lifters are made of
extremely hard-wearing parts which seldom require service and repair.
* Unique personal safety
viboois designed with several built-in safety features. For example, our non-return valve - a standard on all units - ensures that the load is not dropped if the vacuum suddenly stopped running. Instead, the load will be lowered to the ground in a controlled manner.
* Productivity
viboonot only makes life easier for the user; several studies also show increased productivity. This is because the products are developed using the latest technology in cooperation with industry and end-users' demands.
* Application specific solutions
For maximum flexibility the tube lifters are based on a modular system. For instance, the lift tube can be changed depending on the lifting capacity required. It is also possible to have an extended handle fitted to the viboofor applications where extra reach is required.
