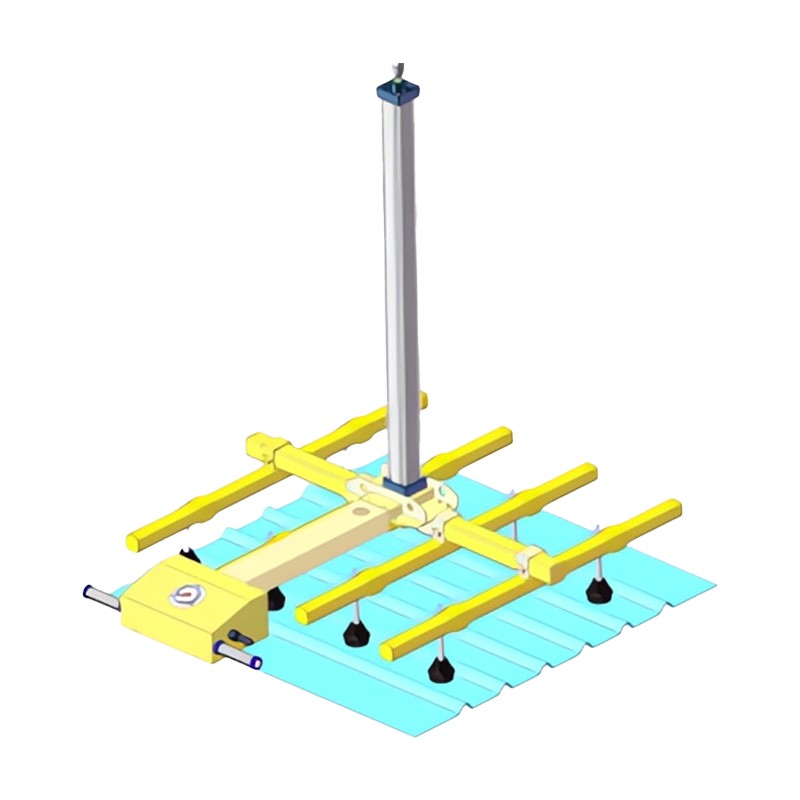

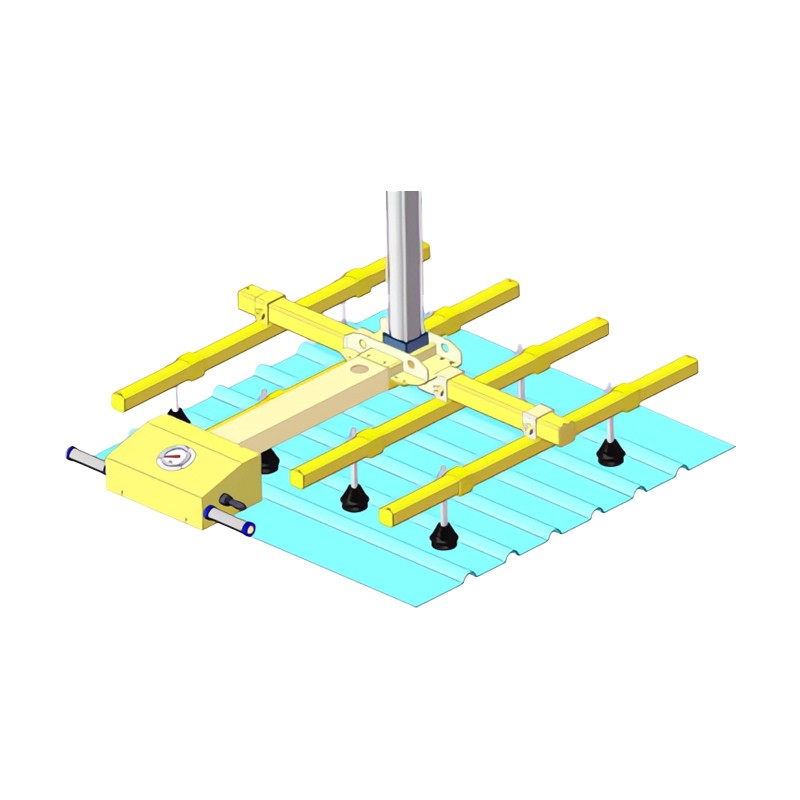

pneumatic vacuum glass llifter sucker

A pneumatic vacuum glass lifter, sometimes referred to as a "sucker," is a specialized tool used primarily for lifting and maneuvering glass sheets and other flat, smooth materials. This equipment is particularly important in industries such as construction, glazing, and manufacturing, where precise and safe handling of glass is critical. Here’s a detailed look at how a pneumatic vacuum glass lifter works and its components.

Working Principle and Components of Pneumatic Vacuum Glass Lifter Sucks

pneumatic vacuum glass llifter sucker

A pneumatic vacuum glass llifter, sometimes referred to as a "sucker," is a specialized tool used primarily for lifting and maneuvering glass sheets and other flat, smooth materials. This equipment is particularly important in industries such as construction, glazing, and manufacturing, where precise and safe handling of glass is critical. Here’s a detailed look at how a pneumatic vacuum glass lifter works and its components:

Working Principle

Pneumatic vacuum glass lifters work by creating a partial vacuum between the suction pads and the surface of the glass. Compressed air is directed through a venturi effect device or an ejector, which creates a low-pressure area (partial vacuum) that removes the air from the suction cups attached to the glass. The higher atmospheric pressure outside the sealed area then presses the glass securely against the suction pads.

Components

The key components of a pneumatic vacuum glass lifter include:

Suction Cups (Suckers): Made from durable materials like rubber or synthetic compounds, these cups form a seal with the surface of the glass.
Pneumatic Vacuum Generator: Typically a venturi tube or ejector that uses compressed air to create the vacuum.
Control System: Ensures the correct vacuum level is maintained and includes sensors and switches for safety.
Compressed Air Supply: Provides the necessary airflow to generate the vacuum.
Lifting Frame: Supports the suction cups and connects them to a lifting mechanism such as a crane or hoist.
Release Mechanism: Allows the operator to break the vacuum seal when the glass needs to be placed down.

Operation

To lift a piece of glass, the suction cups are positioned over the surface of the glass, and the pneumatic vacuum generator is activated. The compressed air evacuates the space between the suction cups and the glass surface, creating a vacuum. Once sufficient vacuum is achieved, the glass is held securely and can be lifted and moved. When the glass needs to be released, the vacuum is broken, and the glass is gently placed down.

Safety Features

Modern pneumatic vacuum glass lifters often include safety features such as:

Pressure Sensors: Monitor the vacuum level and alert the operator if the pressure drops below a safe threshold.
Emergency Release: Provides a quick way to break the vacuum seal in case of emergency.
Redundant Systems: Ensure that if one suction cup fails, others can still support the load.
Alarm Systems: Sound an alarm if the vacuum level is insufficient.

Applications

Pneumatic vacuum glass lifters are widely used in:

Construction: For installing windows, doors, glass facades, and glass partitions.
Glazing: In shops specializing in glass repair and replacement.
Manufacturing: During the production of glass products such as tabletops, shower doors, and decorative glass panels.
Transportation: For loading and unloading glass sheets from delivery vehicles.

Advantages

Enhanced Safety: Reduces the risk of injury associated with manual lifting and handling of heavy glass.
Improved Efficiency: Speeds up the installation process and allows for one-person operation of tasks that would normally require multiple people.
Damage Prevention: Helps prevent damage to the glass by ensuring it is handled smoothly without the risk of dropping or cracking.
Versatility: Can be used in environments where electrical power might not be readily available or where there is a risk of explosion, making them ideal for dusty or hazardous areas.

Pneumatic vacuum glass lifters are essential tools that help professionals handle glass safely and effectively, contributing to improved workplace safety and productivity.
