Optimize Glass Handling with Vacuum Glass Lifters

Optimize Glass Handling with Vacuum Glass Lifters

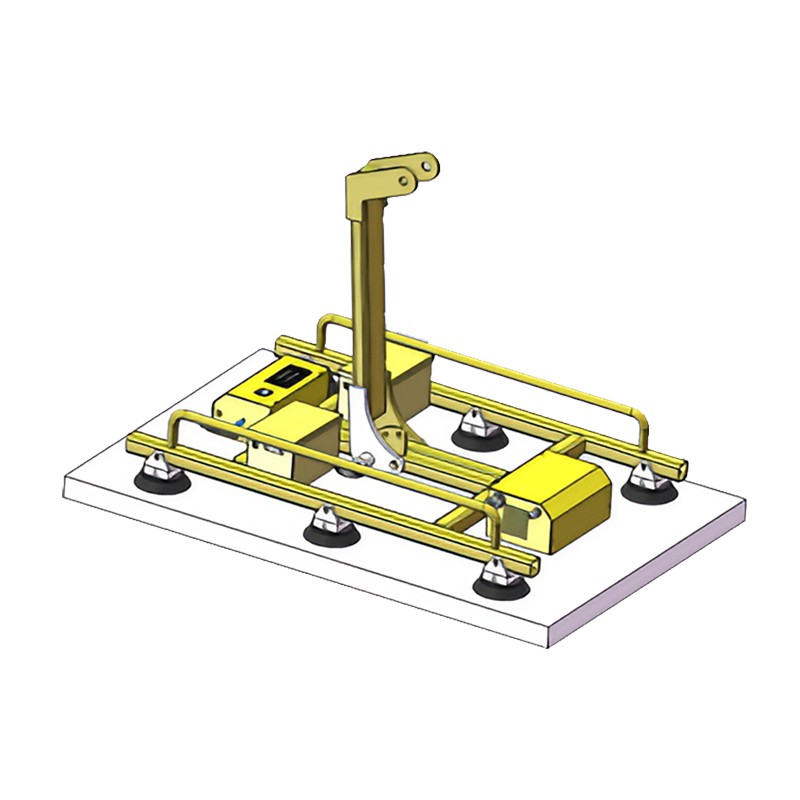

glass lifter vacuum

A glass lifter that uses vacuum technology is a specialized tool designed to handle, lift, and move large, heavy, and often fragile glass panels. This equipment is essential in the construction, glazing, and manufacturing industries where precise and safe handling of glass is crucial. Here’s a more detailed look at the components and operation of a vacuum glass lifter:

Components

1. Vacuum Suction Pads:

• Material: Typically made of rubber or a similar material that can form a tight seal with the glass.

• Number and Size: The number and size of the suction pads vary depending on the weight and dimensions of the glass. Multiple pads are used to distribute the load evenly and ensure a secure grip.

2. Control Unit:

• Vacuum Pump: Generates the vacuum pressure needed to create a strong hold on the glass.

• Control Panel: Allows the operator to control the vacuum pressure, turn the system on and off, and monitor the vacuum level.

• Safety Features: Includes emergency stop buttons, low-vacuum alarms, and automatic release systems in case of power failure.

3. Frame or Beam:

• Support Structure: Supports the suction pads and connects to the lifting mechanism (e.g., crane, hoist, or jib arm).

• Adjustability: Often adjustable to accommodate different sizes and shapes of glass.

4. Lifting Mechanism:

• Crane or Hoist: Can be a manual chain hoist, electric winch, hydraulic lift, or integrated with a jib crane, overhead crane, or other lifting equipment.

• Trolley System: Some lifters include a trolley system for horizontal movement along a beam.

5. Power Supply:

• Electric or Pneumatic: Electric models are common for indoor use, while pneumatic (compressed air) models are often used in outdoor or industrial settings.

Operation

1. Preparation:

• Surface Cleaning: Ensure the glass surface is clean and free from dust, dirt, and debris to ensure a good vacuum seal.

• Pad Placement: Position the suction pads on the glass, ensuring they are evenly distributed and properly aligned.

2. Vacuum Generation:

• Activate the Vacuum: Turn on the vacuum pump to create a strong vacuum between the pads and the glass.

• Check Vacuum Level: Use the control panel to monitor the vacuum level and ensure it is within the safe operating range.

3. Lifting and Moving:

• Lift the Glass: Once the vacuum is established, use the lifting mechanism to raise the glass.

• Positioning: Move the glass to the desired location using the crane, hoist, or trolley system.

• Lowering: Carefully lower the glass into place, ensuring it is positioned correctly.
