vacuum lifter jib crane

A vacuum lifter jib crane combines the functionality of a vacuum lifter with the mobility and reach of a jib crane. This combination is particularly useful in industries where heavy, flat materials need to be moved precisely and safely over a defined radius. Here’s a closer look at how a vacuum lifter jib crane operates and its applications.

EMAIL

Vacuum Lifter Jib Crane: Operating Principles and Applications

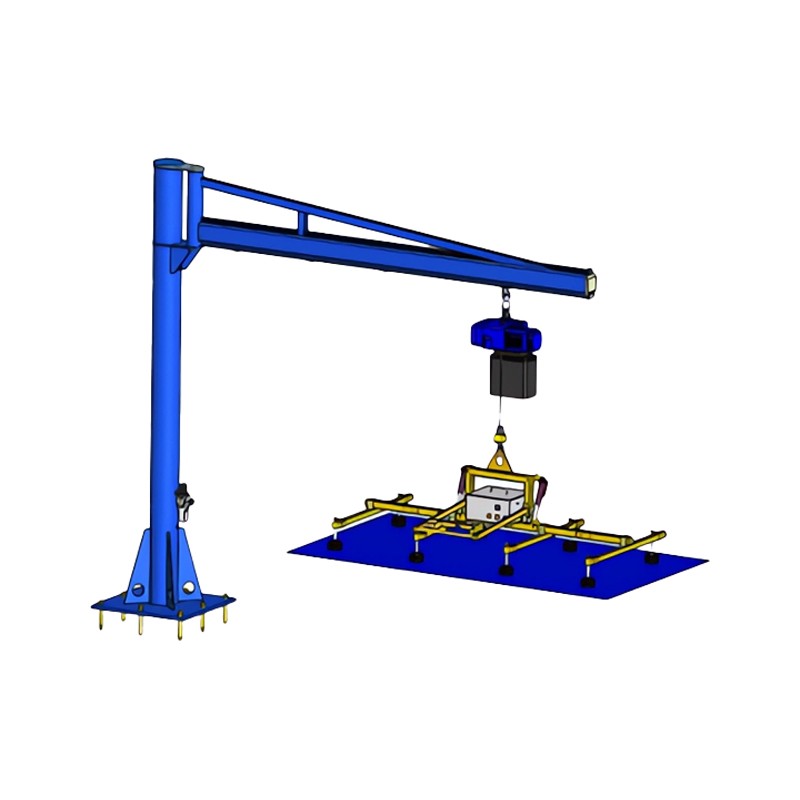

Vacuum Lifter Jib Crane

A vacuum lifter jib crane combines the functionality of a vacuum lifter with the mobility and reach of a jib crane. This combination is particularly useful in industries where heavy, flat materials need to be moved precisely and safely over a defined radius. Here’s a closer look at how a vacuum lifter jib crane operates and its applications:

Working Principle

The vacuum lifter component of the jib crane operates by creating a partial vacuum between the suction pads and the surface of the material being lifted. The jib crane itself provides the means to rotate the boom and move the lifted material horizontally within the crane’s reach.

Vacuum Lifter Component

  • Suction Cups: Typically made of durable rubber or synthetic materials, these cups form a seal with the surface of the material being lifted.

  • Vacuum Generator: Can be an electric pump or a pneumatic system that evacuates air to create the vacuum.

  • Control System: Ensures the correct vacuum level is maintained and includes sensors and switches for safety.

Jib Crane Component

  • Boom (Jib): An arm that extends outward from a vertical column or wall-mounted structure.

  • Column or Base: The support structure that anchors the crane and allows it to rotate.

  • Hoist or Lifting Mechanism: The system that raises and lowers the load attached to the vacuum lifter.

Operation

To lift an object with a vacuum lifter jib crane:

  1. Positioning: The operator moves the jib crane so that the suction cups are directly above the material to be lifted.

  2. Engagement: The suction cups are lowered onto the surface of the material, and the vacuum generator is activated to create the vacuum.

  3. Lifting: Once the vacuum is established, the atmospheric pressure outside the sealed area holds the material securely against the suction pads.

  4. Movement: The jib crane rotates and moves the lifted material to the desired location.

  5. Placement: Upon reaching the target position, the vacuum is released, and the material is gently placed down.

Safety Features

Modern vacuum lifter jib cranes often include safety features such as:

  • Pressure Sensors: Monitor the vacuum level and alert the operator if it drops below a safe threshold.

  • Emergency Release: Allows for immediate release of the vacuum if needed.

  • Load Indicator: Shows the weight of the load being lifted to prevent overloading.

  • Limit Switches: Prevent the crane from rotating beyond its safe operational limits.

Applications

Vacuum lifter jib cranes are used in a variety of industries and applications:

  • Manufacturing: Handling metal sheets, plastic panels, and composite materials.

  • Construction: Positioning glass panes, windows, and other building materials.

  • Warehousing: Moving flat materials from storage to loading areas.

  • Logistics: Loading and unloading flat materials from trucks or containers.

Advantages

  • Enhanced Safety: Reduces the risk of injury associated with manual lifting and handling of heavy materials.

  • Improved Efficiency: Speeds up material handling processes and allows for one-person operation of tasks that would normally require multiple people.

  • Damage Prevention: Helps prevent damage to delicate materials by ensuring they are handled smoothly.

  • Versatility: Suitable for use in confined spaces where traditional cranes might not fit.

A vacuum lifter jib crane offers an integrated solution for lifting and positioning flat materials, providing a safer and more efficient method of material handling in industrial settings.
