material handling automation laser guide pallet

Laser guide pallet is a material handling automation system that uses a laser to track goods as they move across the pallet. The laser follows the goods, and then uses that information to calculate the position of the goods on the pallet.

The system can be installed on any kind of forklift or truck, and it tracks both the vertical and horizontal position of goods. It also has an advanced scanning technology that allows it to measure product dimensions and weight.

EMAIL

Material handling automation guide pallet

Material handling automation is the process of using machinery, robots, and artificial intelligence to automate the movement of materials within a warehouse. This can be done by using laser guide pallets and other automated systems to move products from one location to another, as well as use computer vision and machine learning to track inventory.

Laser guide pallets

Laser guide pallets are a type of material handling automation that uses a barcode or RFID tag on each pallet to track it through the supply chain. The system uses a laser scanner mounted on an overhead gantry for continuous scanning of all items moving through the warehouse or storage facility. The laser guide pallet system includes software that interprets data from the scanning device, determining which items are where in real time.

 benefits of material handling automation

The benefits of material handling automation include increased efficiency in warehousing operations and reduced labor costs associated with manual systems such as forklifts or pallet jacks while providing accurate inventory management data so businesses can make better decisions about purchasing inventory based on demand trends over time rather than relying solely on historical data

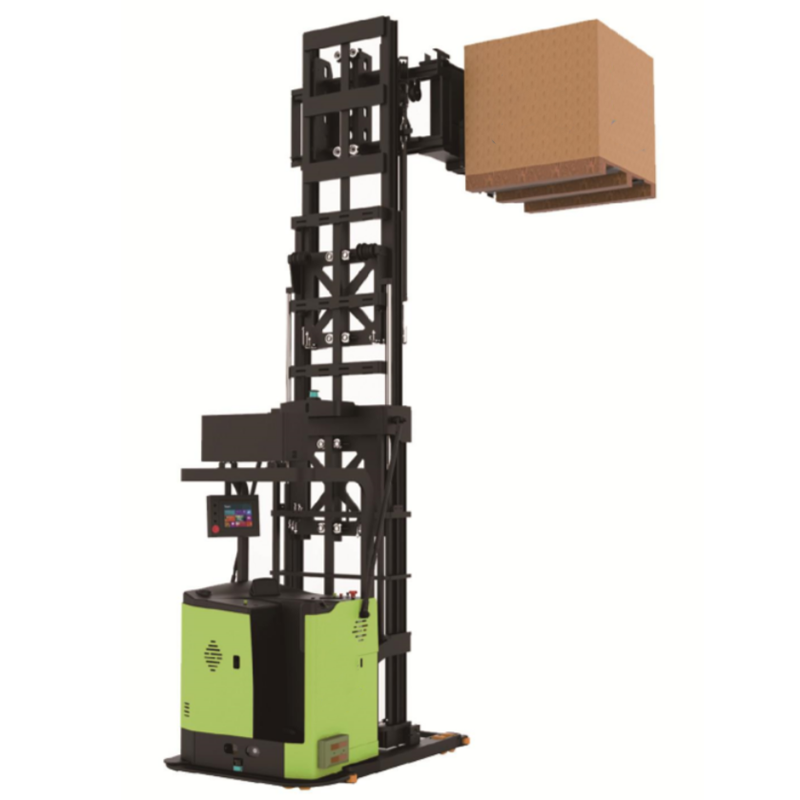

Model: TL-H3000-DL

Plane handling forklift AGV, stacking alleyway small width

Fast speed, high operating efficiency, vision + inertia + laser navigation

CAN-open based full servo control system

 All-round protection, high navigation accuracy

Intelligent forklift pallet, can be loaded with roller line, robotic arm and other application devices to achieve material gripping, running and other actions.

Three-way stacking forklift parameter list

Model

TL-H2900-DL

Lifting height (mm)

6000(customizable

Lifting load(KG)

1500(customizable

Body mass with secondary cell (KG)

5500

Body size(mm)

L3800*W1600*H2900

Traveling speed

2.0m/s

Accuracy (mm)

±10mm

Navigation mode

Vision + inertia + laser navigation

Radius of turn(mm)

2017 (can be customized non-standard)

Climbing capacity

5mm

Front and rear laser safety scanner

Three levels of protection

Automatic cargo contour recognition system

Three levels of protection

Contact sensing unit

Mechanical protection

Sound and light warning

Warning protection

Wireless network

Industrial WIFI

System Interface

Reserved for WMS, MES, ERP, central dispatching system expansion port

Battery Type

Nickel-chromium / lead-acid / lithium (power type)

Battery voltage/capacity

Standard use 8 hours, can customize high capacity battery

Charging method

Manual charging/automatic charging/manual power change

Main engine Color

Can be customized upon request

Intelligent attributes

Customization (distance measurement, clamping, side shift, intelligent weighing, etc.)

Service life

10 years
