Warehouse Automated Guided Vehicle (AGV)

A warehouse automated guided vehicle (AGV) is a robot that is used in warehouses to transport materials. AGVs can help to increase efficiency and productivity by moving certain materials to their destination with much more accuracy and speed than humans. They are also useful in applications where the task cannot be performed by a person because of safety issues or the environment.

EMAIL

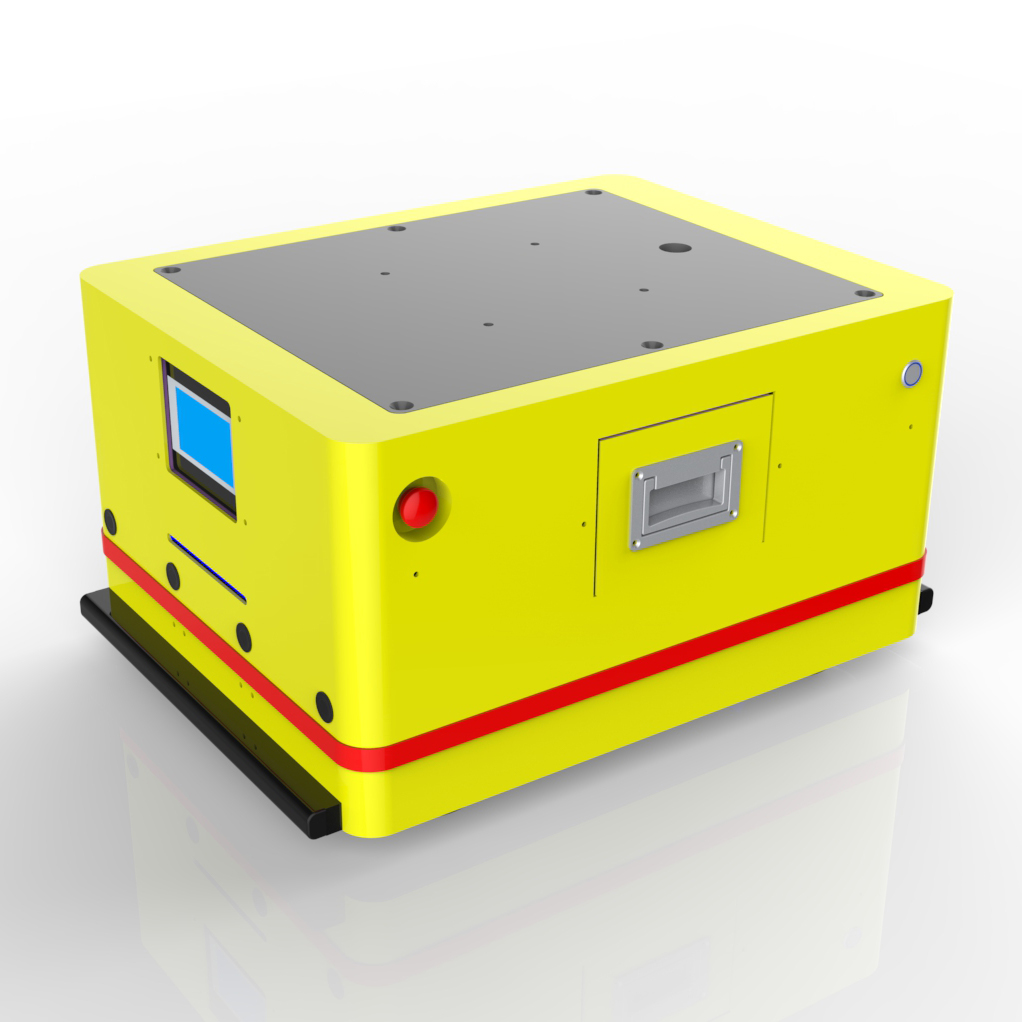

warehouse automated guided vehicle (AGV)


The warehouse automated guided vehicle (AGV) is a two-way AGV for warehouse automation, which is widely used in logistics, post and other industries.


The product has the following features:

Singe drive agvs

Single-drive bidirectional operation, capable of forward, backward, 90 °/180 °/360 ° reverse, acceleration, deceleration, bifurcated turning, timed stop, reversing operation and other multi-function driving

Top carry agvs

The top of AGV can directly place materials or carry material frames, roller platforms, etc., automatically operate the distribution line materials, efficiently realize the turnover of materials in the workshop, and maximize the production efficiency of the enterprise;

Muti-sensor agvs

Multi-sensor integrated navigation is safe and reliable, flexible and efficient, realizes full automation without manual intervention, reduces manual labor, and has a strong degree of automatic handling. The degree of intelligent adjustment can seamlessly dock with MES/WMS/ERP system, improve logistics efficiency, adapt to different complex scenarios quickly and flexibly, and efficiently complete the automatic transportation of logistics。

performance parameter

description

Model number

VL-BF-430SX-001

Overall dimension

StandardL860mm*W500mm*H430mmCustomized

Navigation type

Magnetic navigation

Driving form

Differential drive

Running direction

Multi-functional driving such as forward, backward, reverse, bifurcated turn, timed stop, reversing operation, etc

Speed

0~40m/minCustomized

Max Load

100KGCustomized

Gradeability

2Degree

Turning radius

500mmOr in situ90°/180°/360°revolve

Stop precision

±10mm

Navigation accuracy

±10mm

Duration

8-12H(Customized)

Charging mode

Manual charging/automatic charging (optional)

human-computer interaction

4.3Inch touch screen

Types of alarm

Audible and visual alarm

Communication network

WIFINetwork/RF network

Power battery

22AhHigh-quality lead-acid battery

Protection rate

Obstacle sensor+contact bumper+emergency stop button

Design life

>80000H
