L shape backpack agv two way direction

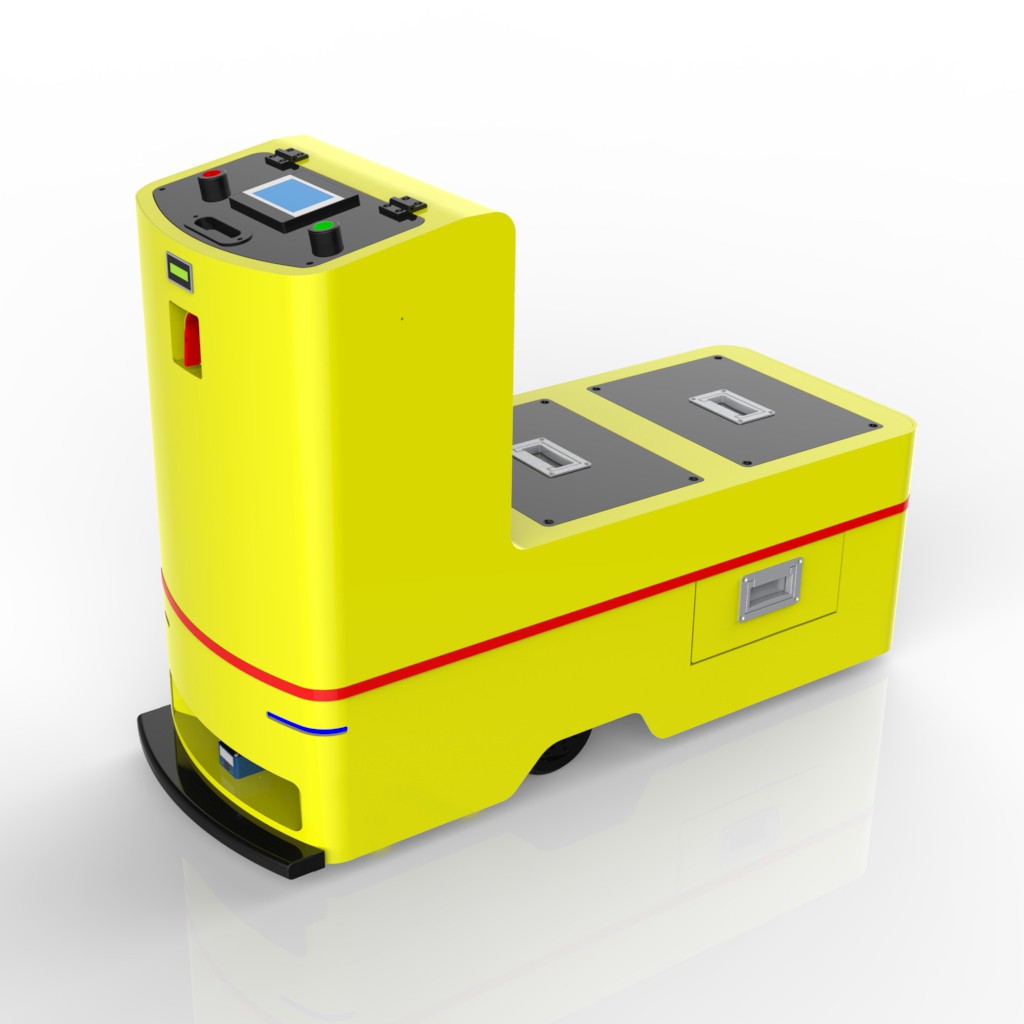

L Shape Backpack Agv Two Way Direction

The l shape backpack agv two way direction is a type of automated guided vehicle (AGV) that uses magnetic navigation to move along the floor of a warehouse. This type of AGV can be used to transport goods, stack them, and even unload pallets onto conveyor belts.

EMAIL

Sell backpack and pull intregrated automatic agvs

The L shape backpack is a type of automated guided vehicle (AGV) that has two ways to move. They are used for many purposes including the transportation of goods through a warehouse or factory and also for moving heavy materials in construction sites.


The two-way AGV uses two different methods to transport objects, depending on how much weight is being carried. For example, if an object is light enough to be carried manually then it will be moved via a wheeled system while heavier loads will be carried magnetically.


This allows the operator to easily move objects around their workplace without having to worry about them tipping over or falling over as they would if they were moved manually by hand. It also means that they can carry out other tasks while moving objects around their workplace without needing anyone else's help which saves time and money in terms of labor costs!


General features

Ø Single-drive bidirectional operation, capable of forward, backward, 90 °/180 °/360 ° reverse, acceleration, deceleration, bifurcated turning, timed stop, reversing operation and other multi-function driving;

Ø The top of AGV can directly place materials or carry material frames, roller platforms, etc., automatically operate the distribution line materials, efficiently realize the turnover of materials in the workshop, and maximize the production efficiency of the enterprise;

Ø Multi-sensor integrated navigation is safe and reliable, flexible and efficient, realizes full automation without manual intervention, reduces manual labor, and has a strong degree of automatic handling. The degree of intelligent adjustment can seamlessly dock with MES/WMS/ERP system, improve logistics efficiency, adapt to different complex scenarios quickly and flexibly, and efficiently complete the automatic transportation of logistics。

performance parameter

description

Model number

VL-BF-550SX-001

Overall dimension

StandardL1200mm*W500mm*H550mmCustomized

Navigation type

Magnetic navigation

Driving form

Differential drive

Running direction

Multi-functional driving such as forward, backward, reverse, bifurcated turn, timed stop, reversing operation, etc

Speed

0~40m/minCustomized

Max Load

100KGCustomized

Gradeability

2Degree

Turning radius

500mmOr in situ90°/180°/360°revolve

Stop precision

±10mm

Navigation accuracy

±10mm

Duration

8-12H(Customized)

Charging mode

Manual charging/automatic charging (optional)

human-computer interaction

4.3Inch touch screen

Types of alarm

Audible and visual alarm

Communication network

WIFINetwork/RF network

Power battery

22AhHigh-quality lead-acid battery

Protection rate

Obstacle sensor+contact bumper+emergency stop button

Design life

>80000H

backpack and pull integrated agvs
