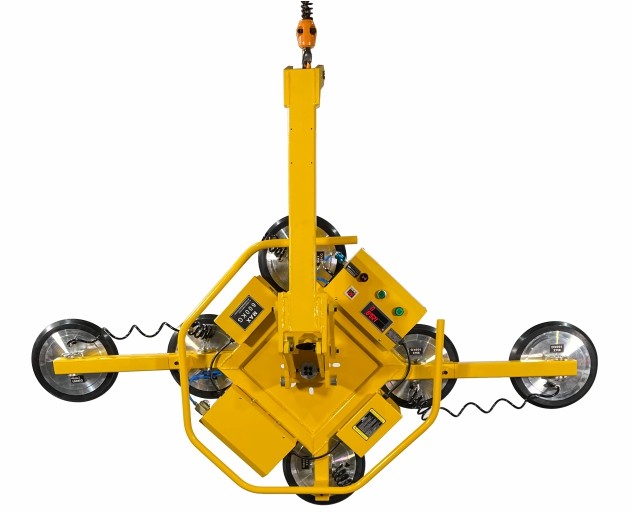

800KG load sheet metal vacuum lifting equipment

The 800KG load sheet metal vacuum lifting equipment is a vacuum lifting machine that can be used to lift various types of materials. It is suitable for lifting materials with different shapes and sizes. It can be used in various industries such as construction, shipbuilding, machinery manufacturing, electrical appliances, automotive parts and so on.

800KG load sheet metal vacuum lifting equipment

vacuum lifter for sheet metal

This is a high efficiency and low cost vacuum lifter, which is specially designed for sheet metal. It can be used on all kinds of sheet metal, such as aluminum, copper alloy and zinc alloy, stainless steel. The working principle of this machine is to use air pressure to suck the sheet metal into the barrel of the vacuum lifter and then use the suction force to lift the sheet metal. The maximum lifting height is 2 meters, which will not damage the surface of the sheet metal. This machine can be widely used in factories, workshops and mines for lifting various kinds of sheet metals.

General information of vacuum lifter for sheet metals

Model	VK -G800
Specified Load(kg)	800
Sucker Diameter(mm)	300
Numbers of Sucker(Pcs)	8
Out size(mm)	2000x2000
Package size(mm)	1230x 1030x 370
Package weight (kg)	30
Overturn(Degree)	90
Revolve (Degree)	360
Machine net weight (kg)	approx110
