Jib Crane Vacuum Lifters

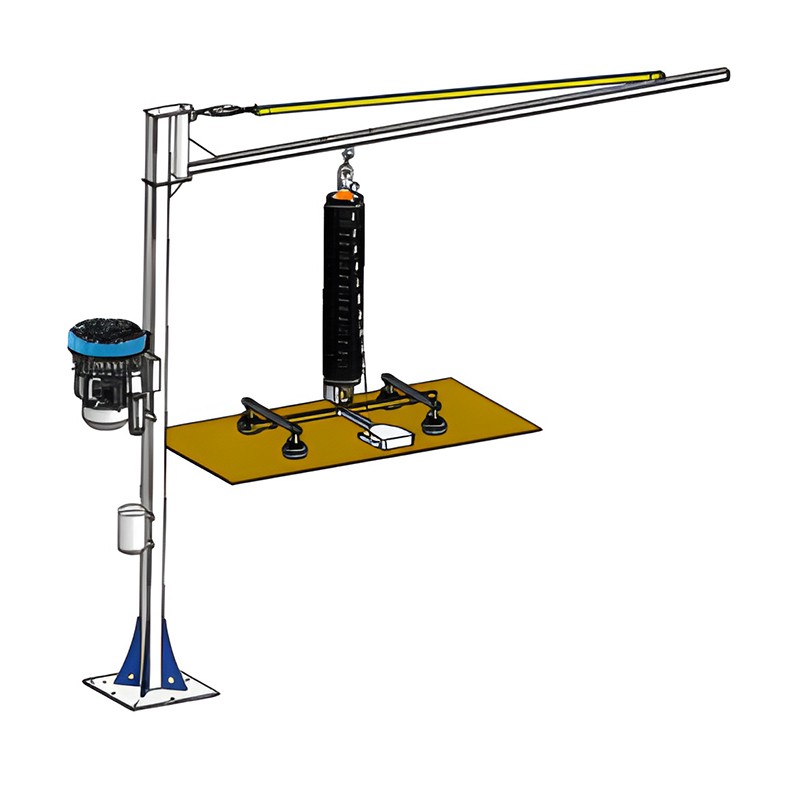

A jib crane vacuum lifter is a specialized lifting system that combines the versatility and maneuverability of a jib crane with the secure and gentle handling capabilities of a vacuum lifter. This combination is particularly useful for industries that need to handle large, flat, or delicate materials such as glass, metal sheets, plastic panels, and other non-porous surfaces. Here’s a more detailed look at the components, features, and applications of a jib crane vacuum lifter:

Components

1. Jib Crane:

• Base: The foundation or mounting point of the jib crane. It can be floor-mounted, wall-mounted, or column-mounted.

• Jib Arm (Boom): The horizontal arm that supports the hoist and trolley. It can rotate around the base, providing a wide range of motion.

• Trolley: A wheeled carriage that runs along the jib arm, carrying the hoist mechanism.

• Hoist: The lifting device attached to the trolley, which includes the motor, drum, and lifting cables or chains.

2. Vacuum Lifting System:

• Suction Cups (Pads): These are the key elements that make contact with the material being lifted. Suction cups come in various shapes and sizes, including flat, bellows, and oval, to accommodate different surface types and load configurations.

• Vacuum Pump: The pump creates the necessary negative pressure (vacuum) to adhere the suction cups to the material. Pumps can be electric, pneumatic, or manual, depending on the application and power source available.

• Control Unit: This includes the control panel and any associated electronics. It allows the operator to start and stop the vacuum, and it may include features like vacuum level indicators, emergency release mechanisms, and safety interlocks.

3. Power Supply:

• Electric Power: Most jib cranes and vacuum lifters are powered by electricity, with power supplied through a cable or conductor bar system.

• Pneumatic Power: Some systems use compressed air, especially in environments where electrical equipment is not suitable.

4. Control System:

• Pendant Control: A wired control unit that allows the operator to control the movement of the crane and the hoist.

• Wireless Remote Control: For greater flexibility, some systems use wireless remote controls.

• Cab-Mounted Control Station: In larger operations, a cab-mounted control station may be used.

5. Safety Features:

• Emergency Release: A mechanism to quickly release the load in case of an emergency, such as power failure or loss of vacuum.

• Load Sensors: To prevent overloading and ensure safe operation.

• Visual and Audible Alarms: To alert the operator to any issues, such as loss of vacuum or overload conditions.

• Anti-Collision Systems: To prevent the crane from colliding with obstacles or other machinery.

Applications

• Glass Industry: Lifting and installing large glass panels, windows, and mirrors.

• Metalworking: Handling metal sheets, plates, and parts during fabrication and assembly.

• Plastics and Packaging: Moving plastic sheets, containers, and packaging materials.

• Automotive Manufacturing: Lifting body panels, doors, and other automotive components.

• Construction: Installing curtain walls, facades, and other architectural glass.

• Solar Panel Installation: Moving and placing solar panels onto frames or roofs.

• Woodworking and Furniture Manufacturing: Handling wooden panels, doors, and other furniture components.

Advantages

• Material Protection: The use of suction cups minimizes the risk of damage to the material, as there is no direct mechanical clamping.
