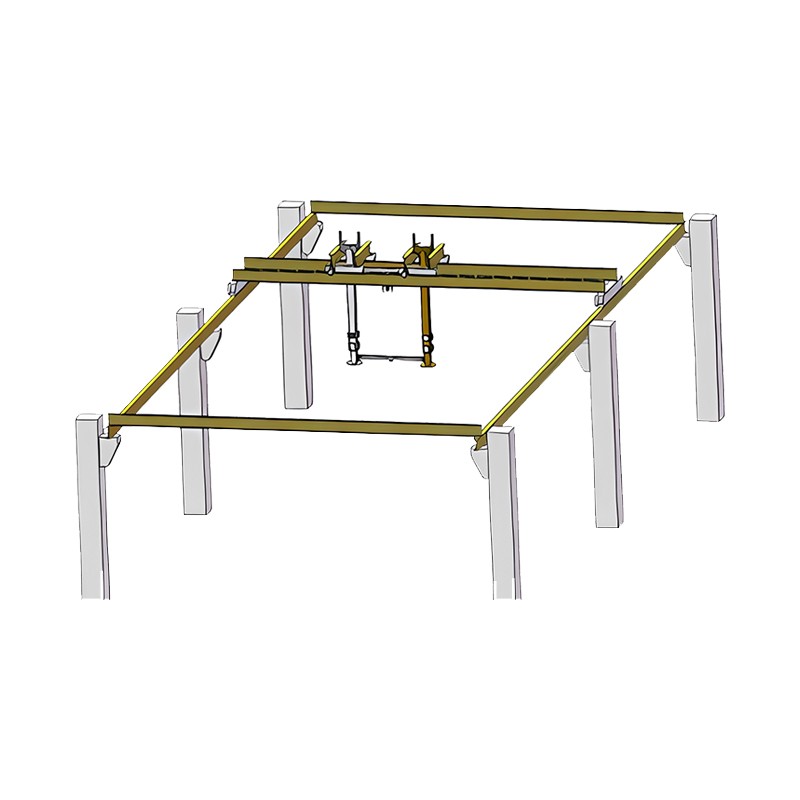

gantry crane lifter

A gantry crane lifter is a type of overhead crane that consists of a bridge (or girder) supported by two or more legs, which run on fixed rails or wheels. The bridge can move along the length of the track, and a trolley with a hoist moves along the bridge, allowing for movement in two dimensions: horizontally along the bridge and vertically to lift and lower loads. Gantry cranes are highly versatile and can be used in a wide range of applications, from construction and manufacturing to shipbuilding and material handling.

Key Components of a Gantry Crane Lifter

1. Bridge (Girder): This is the horizontal beam that spans the area where the lifting will take place. It supports the trolley and hoist.

2. Legs (Supports): The vertical supports that hold up the bridge. They can be fixed to a foundation or mobile, depending on the design.

3. Trolley: A wheeled carriage that runs along the bridge, carrying the hoist mechanism.

4. Hoist: The lifting device attached to the trolley, which includes the motor, drum, and lifting cables or chains. The hoist is responsible for raising and lowering the load.

5. Control System: This can be a wired pendant, wireless remote control, or a cab-mounted control station, allowing the operator to control the movement of the crane and the hoist.

6. Power Supply: Electric power is typically supplied to the crane through a cable or conductor bar system, although some smaller, mobile cranes may use battery power.

Types of Gantry Cranes

• Fixed Gantry Crane: The legs of the crane are fixed to a foundation, providing a stable and permanent solution for lifting operations.

• Mobile Gantry Crane: The legs of the crane are mounted on wheels, allowing it to be moved around a facility or job site as needed.

• Adjustable Gantry Crane: The height and span of the crane can be adjusted, making it more flexible for different lifting needs.

• Full Gantry Crane: The legs of the crane run on rails, similar to a bridge crane, but with the added advantage of being able to move the entire structure along the length of the building or work area.

Applications

• Construction: For lifting and moving materials, such as steel beams, concrete slabs, and other heavy components.

• Manufacturing: Handling raw materials, parts, and finished products within a factory.

• Shipbuilding and Port Operations: Loading and unloading cargo, and moving large ship sections.

• Warehouse and Logistics: Moving pallets, containers, and other goods in storage facilities.

• Maintenance and Repair: Lifting heavy machinery and equipment for maintenance or repair work.

Considerations When Selecting a Gantry Crane

• Load Capacity: Ensure the crane can safely handle the maximum weight of the loads you will be lifting.

• Span and Height: The distance between the legs (span) and the clearance under the bridge (height) must accommodate your workspace and the size of the loads.

• Mobility: Decide if you need a fixed or mobile crane based on your operational requirements.

• Environmental Conditions: Consider factors like indoor vs. outdoor use, exposure to elements, and any specific industry standards or regulations.

• Safety Features: Look for features like overload protection, emergency stop, and anti-collision systems.

If you're planning to purchase or install a gantry crane, it's important to consult with a supplier or manufacturer who can provide a solution tailored to your specific needs and ensure compliance with safety standards and regulations.
