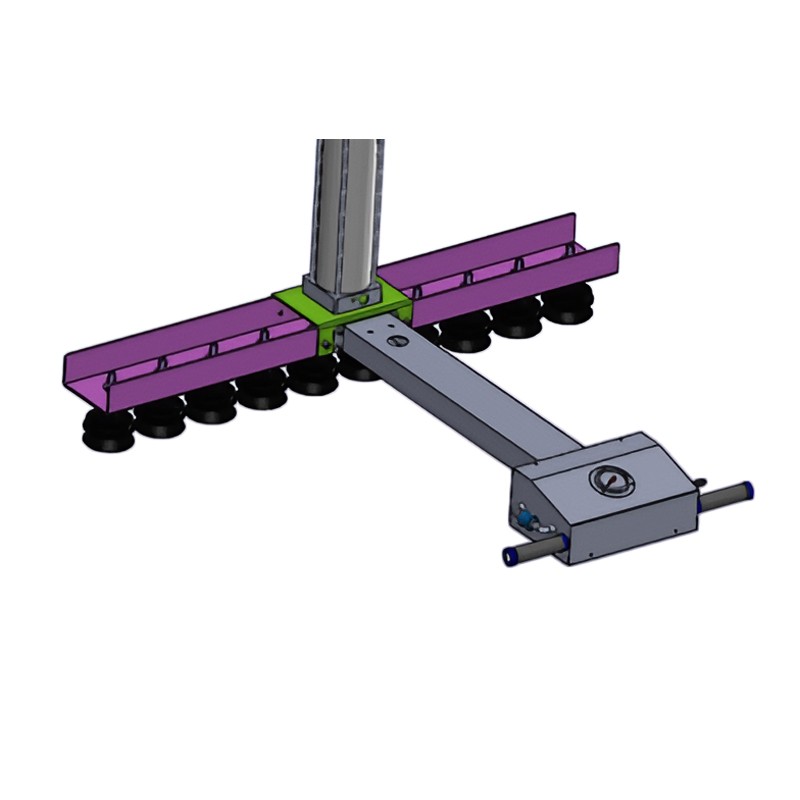

pneumatic vacuum glass llifter sucker

Working Principle and Applications of  pneumatic vacuum glass llifter sucker

A pneumatic vacuum lifter sucker is a specialized type of vacuum lifting device that uses compressed air to generate the vacuum necessary for lifting and moving objects. Here’s a brief overview of how it works and where it is commonly applied:

Working Principle

Pneumatic vacuum lifters operate based on the principle of pneumatic vacuum generation. Instead of using electric pumps, these devices use compressed air to create a vacuum. The compressed air is directed through a venturi effect device or an ejector, which creates a low-pressure area (partial vacuum) that sucks the air out of the suction cups attached to the load. Atmospheric pressure then pushes the load against the suction cups, enabling the lift.

Components

The typical components of a pneumatic vacuum lifter include:

• Suction Cups: Made from durable materials like rubber or synthetic compounds, they form the seal with the surface of the object being lifted.

• Vacuum Generator: Often a pneumatic ejector or venturi tube that uses compressed air to create the vacuum.

• Control System: Ensures the correct vacuum level is maintained and may include sensors and switches for safety.

• Compressed Air Supply: Provides the necessary air flow to generate the vacuum.

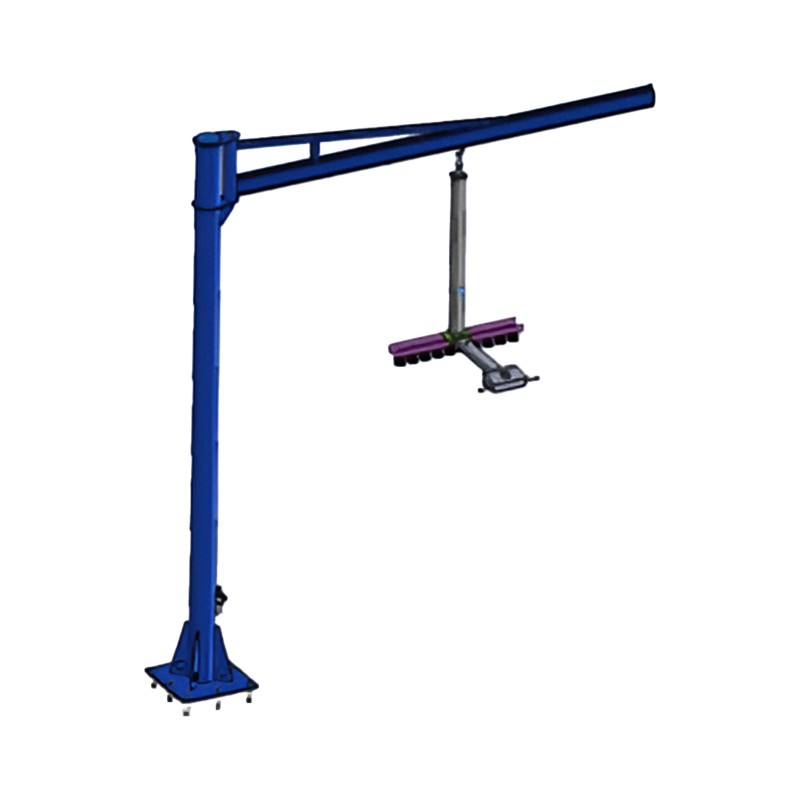

• Lifting Mechanism: May include hoists, cranes, or manipulators to lift and move the load.

Operation

To lift an object, the operator positions the suction cups over the surface of the item and activates the vacuum generator. The compressed air is then used to evacuate the air from the space between the suction cups and the object. Once sufficient vacuum has been achieved, the atmospheric pressure keeps the object securely attached to the suction cups. When the object needs to be released, the vacuum is released, and the item is set down carefully.

Safety Features

Modern pneumatic vacuum lifters often come equipped with safety features such as:

• Alarms or indicators that alert operators when the vacuum level is insufficient.

• Automatic shut-off mechanisms that prevent the load from dropping if the vacuum fails.

• Redundant systems to ensure continuous operation even if one part of the system fails.

Applications

Pneumatic vacuum lifters are particularly useful in environments where electrical power might not be readily available or where there is a risk of explosion, making them ideal for:

• Construction sites where materials need to be lifted and moved.

• Manufacturing plants for handling glass, metal sheets, wood panels, and other flat surfaces.

• Logistics operations for loading and unloading trucks or containers.

• Industries requiring dust-free or explosion-proof lifting solutions.

These lifters are designed to enhance ergonomics, boost productivity, and minimize the risk of injury associated with manual lifting tasks.
