Vacuum Sheet Lifters: Essential Tools for Safe and Efficient Material Handling

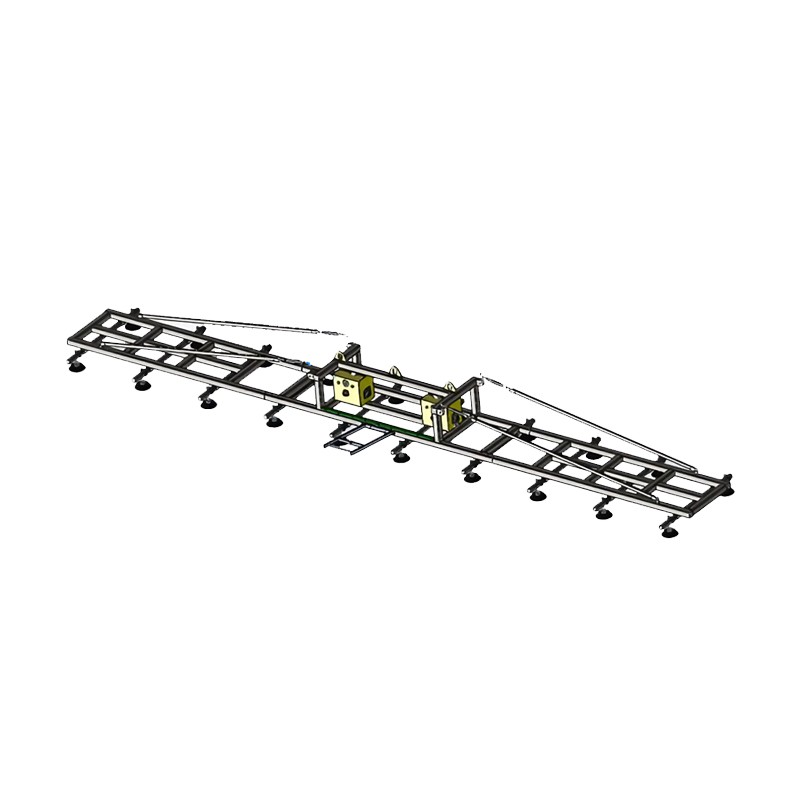

Vacuum sheet lifter

A  vacuum sheet lifter is a specialized device used to lift and move flat, smooth materials such as sheets of metal, plastic, wood, or similar materials. This equipment is particularly beneficial in manufacturing, construction, and warehousing environments where heavy or cumbersome sheets need to be handled safely and efficiently. Here’s an overview of vacuum sheet lifters:

Working Principle

Vacuum sheet lifters work by creating a partial vacuum between the suction pads and the surface of the material being lifted. When the suction pads make contact with the sheet, a vacuum generator removes air from the space between the pads and the sheet, creating a low-pressure area. The higher atmospheric pressure outside the sealed area then presses the sheet against the suction pads, securing it in place.

Components

The main components of a vacuum sheet lifter include:

• Suction Cups: Made of durable materials like rubber or synthetic compounds, these cups form a seal with the surface of the material.

• Vacuum Generator: This could be an electric pump or a pneumatic system that evacuates air to create the vacuum.

• Control System: Manages the vacuum level and ensures the safety of the operation, often including sensors and alarms.

• Frame or Mounting Structure: Supports the suction cups and connects them to a lifting mechanism, such as a crane or hoist.

• Release Mechanism: Allows the operator to break the vacuum seal when the sheet needs to be placed down.

Operation

To lift a sheet, the suction cups are positioned over the surface of the material, and the vacuum generator is activated. Once the vacuum is established, the atmospheric pressure holds the sheet firmly against the suction pads. The sheet can then be lifted and moved to the desired location. When the sheet needs to be set down, the vacuum is released, allowing the sheet to be placed gently.

Safety Features

Modern vacuum sheet lifters often come equipped with safety features such as:

• Pressure Sensors: Monitor the vacuum level and alert the operator if the pressure drops below a safe threshold.

• Emergency Release: Provides a quick way to break the vacuum seal in case of an emergency.

• Redundant Systems: Some models feature multiple suction cups and independent vacuum sources to ensure that if one fails, the others can still support the load.

Applications

Vacuum sheet lifters are used in a variety of industries and applications, including:

• Manufacturing: For handling metal sheets in fabrication, plastic sheets in packaging, and wooden panels in woodworking.

• Construction: Moving plywood, drywall, or other building materials on-site.

• Warehousing and Logistics: Loading and unloading sheets from trucks or storage racks.

• Automotive Industry: Transporting sheet metal parts in assembly plants.

Advantages

• Increased Productivity: Enables faster handling of materials compared to manual lifting.

• Improved Ergonomics: Reduces physical strain on workers by automating the lifting process.

• Reduced Risk of Damage: Helps prevent damage to the sheets during handling.

• Enhanced Safety: Minimizes the risk of injury associated with manual lifting and handling of heavy materials.

Vacuum sheet lifters are essential tools that contribute to safer working conditions and more efficient material handling in many industrial settings.
