Bridge Cranes: Types, Components, Operations, and Industrial Applications

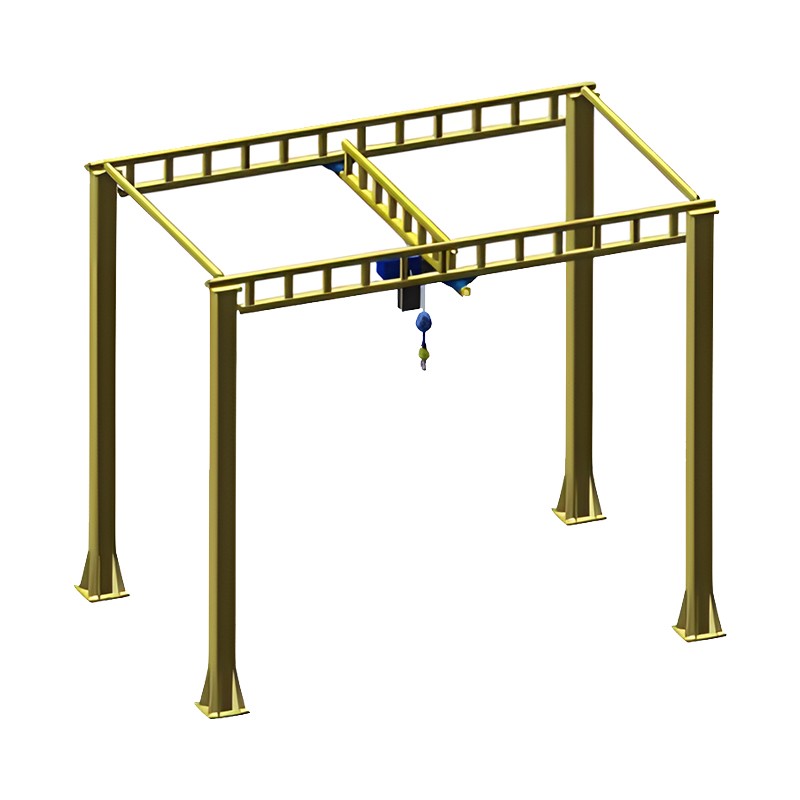

Bridge Crane

A bridge crane is a type of overhead crane that is commonly used in industrial settings for lifting and moving heavy loads over a fixed path. Bridge cranes are designed to provide a clear floor space beneath them, allowing for operations to continue underneath the crane without obstruction. Here’s a detailed look at bridge cranes:

Types of Bridge Cranes

Bridge cranes can be categorized into several types based on their design and functionality:

1. Single Girder Bridge Crane:

• Design: Features a single main beam or girder that spans the width of the workspace.

• Application: Suitable for lighter loads and shorter spans.

• Advantages: Economical, compact, and easier to install than double girder cranes.

2. Double Girder Bridge Crane:

• Design: Has two main beams or girders that provide increased stability and strength.

• Application: Ideal for heavier loads and longer spans.

• Advantages: Can handle larger capacities and provides better control over the load.

3. Top Running Bridge Crane:

• Design: The crane runs on top-mounted rails attached to the building's structure.

• Application: Used in facilities where high capacity and long spans are required.

• Advantages: Provides greater stability and can handle heavier loads.

4. Underhung Bridge Crane:

• Design: The crane runs under the runway beams rather than on top.

• Application: Useful in facilities with lower headroom requirements.

• Advantages: Requires less vertical space and can be more economical.

5. Monorail Crane:

• Design: Consists of a single rail system that the crane runs along.

• Application: Suitable for light-duty applications and simple material handling tasks.

• Advantages: Simple design, cost-effective, and easy to install.

Components of a Bridge Crane

The primary components of a bridge crane include:

• Girder(s): The main structural beams that span the width of the crane’s path.

• Trolley: Moves along the girder(s) and carries the hoist or lifting mechanism.

• Hoist: The lifting mechanism that raises and lowers the load.

• Runway Beams: The rails along which the crane travels.

• Drive Mechanism: Motors and gearboxes that move the crane and trolley.

• Controls: Operator interfaces that allow for the control of crane movements.

• Safety Devices: Such as limit switches, overload protection, and emergency stop buttons.

Operation

Bridge cranes are operated either manually or automatically, depending on the sophistication of the system:
