Jib Crane Vacuum Lifters for Efficient Material Handling

A jib crane with a vacuum lifter is an efficient solution for handling and moving various materials, especially those that are flat, smooth, or non-porous, such as glass, metal sheets, or plastic panels. This type of lifting system combines the flexibility and range of motion provided by a jib crane with the secure and gentle gripping power of a vacuum lifter.

Jib Crane Vacuum Lifters for Efficient Material Handling

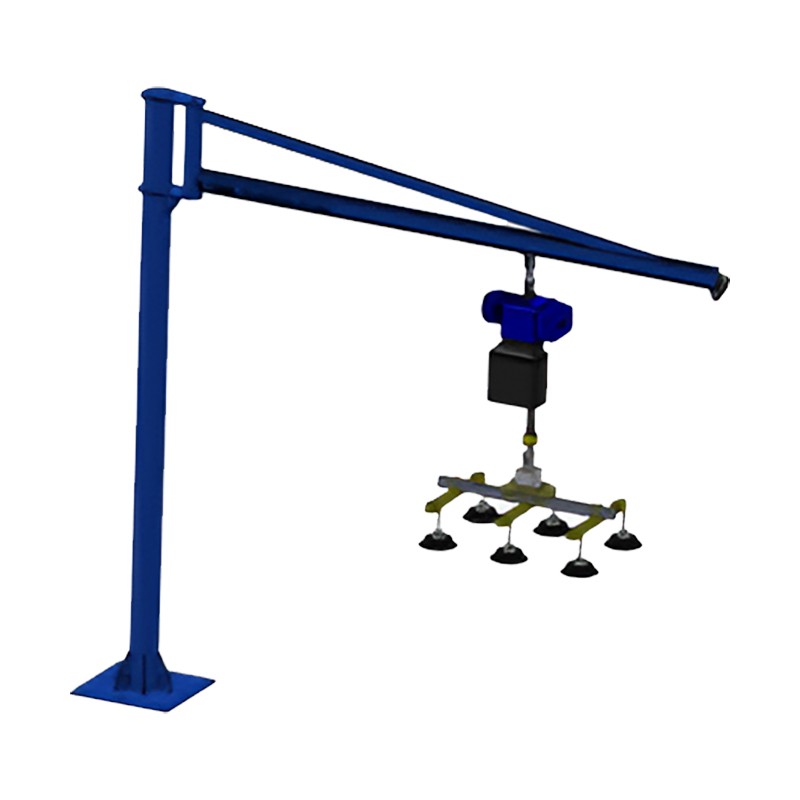

jib crane vacuum lifter

Here's a more detailed look at how a jib crane with a vacuum lifter works:

Jib Crane

Design: A jib crane consists of a horizontal arm (the jib) that supports a hoist. The jib can be fixed, wall-mounted, or freestanding, and it allows for movement in a circular or semi-circular area.
Movement: It can rotate around its base and, depending on the design, the jib may also be able to tilt up and down. The hoist travels along the length of the jib, allowing for vertical lifting and lowering of loads.
Capacity: Jib cranes come in various capacities, from light-duty models for smaller loads to heavy-duty cranes capable of handling several tons.

Vacuum Lifter

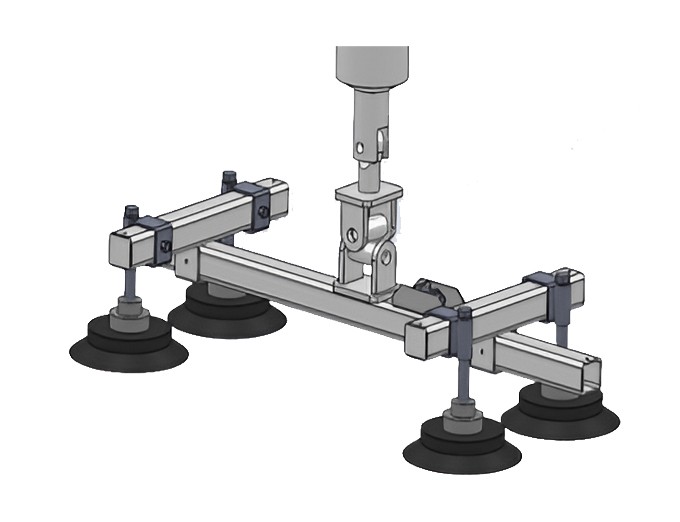

Suction Cups: The vacuum lifter uses one or more suction cups, which are placed on the surface of the material to be lifted. These cups create a vacuum seal, which holds the load securely.
Vacuum Pump: A pump creates the necessary vacuum. When the vacuum is activated, the atmospheric pressure outside the cup holds the load against the suction cup(s).
Control System: A control unit manages the vacuum, providing features such as an emergency release mechanism, which can quickly release the load if needed, and indicators to show when the vacuum level is sufficient for safe lifting.

Advantages

Material Handling: Ideal for handling materials that could be damaged by traditional clamps or hooks, such as glass, solar panels, or delicate metal sheets.
Ease of Use: The vacuum lifter provides a quick and easy way to attach and release the load, increasing productivity.
Safety: Reduces the risk of dropping or damaging the load, and minimizes the physical strain on operators.
Precision: Allows for precise placement of the load, which is particularly useful in applications requiring careful alignment, like window installation.

Applications

Glass Industry: For handling and installing large glass panels, such as windows, doors, or facades.
Metalworking: Moving metal sheets and components during manufacturing processes.
Construction: Lifting and placing building materials, including drywall, panels, and roofing.
Manufacturing: General material handling within factories, especially where space is limited and precision is required.

When selecting a jib crane with a vacuum lifter, consider the following:

The weight and dimensions of the materials you need to handle.
The reach and height requirements for your specific application.
The environment in which the crane will operate, including any obstacles or space constraints.
The safety features and certifications of the equipment, ensuring compliance with local regulations.

If you're planning to purchase or install such a system, it's advisable to consult with a supplier or manufacturer who can provide a solution tailored to your needs.
