Gantry Carton Crane for Streamlined Material Handling

A gantry carton crane, also known as a gantry box lifter or carton handling gantry, is a specialized type of overhead crane designed to lift, move, and place cartons, boxes, and other similar packaged goods. This equipment is particularly useful in warehouses, distribution centers, and manufacturing facilities where there is a need for efficient and safe handling of packaged materials.

Gantry Carton Crane for Streamlined Material Handling

Gantry Carton Crane

Key Components

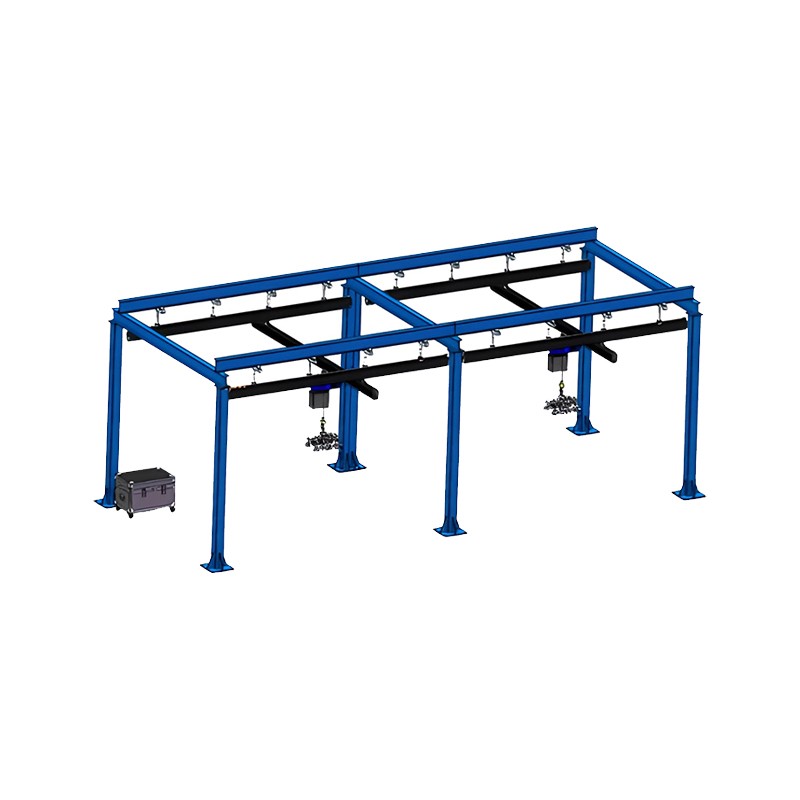

Gantry Structure:

Bridge (Girder): The horizontal beam that spans the work area.
Legs (Supports): The vertical supports that hold up the bridge. These can be fixed or mobile, depending on the design.
Rails: If the gantry is mobile, it will run on rails or wheels, allowing it to move along the length of the work area.

Trolley and Hoist:

Trolley: A wheeled carriage that runs along the bridge, carrying the hoist mechanism.
Hoist: The lifting device attached to the trolley, which includes the motor, drum, and lifting cables or chains. It is responsible for raising and lowering the load.

Carton Handling Attachment:

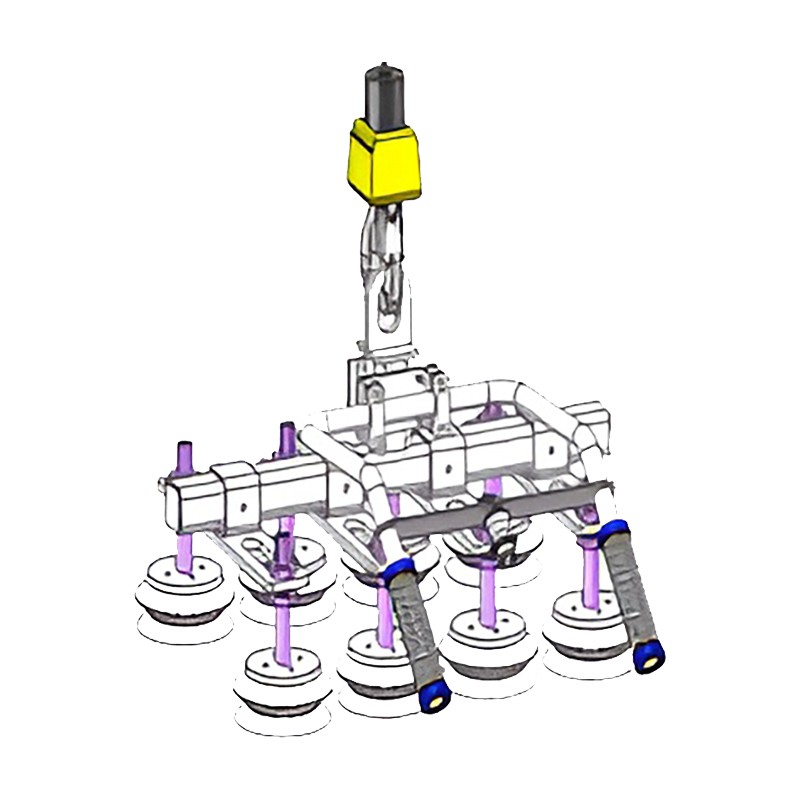

Clamp or Suction Cup System: Depending on the design, the gantry may use mechanical clamps, suction cups, or a combination of both to securely grip and lift cartons.
Adjustable Grippers: Some systems have adjustable grippers to handle different sizes of cartons.

Control System:

Pendant Control: A wired control unit that allows the operator to control the movement of the crane and the hoist.
Wireless Remote Control: For greater flexibility, some systems use wireless remote controls.
Cab-Mounted Control Station: In larger operations, a cab-mounted control station may be used.

Power Supply:

Electric Power: Most gantry cranes are powered by electricity, with power supplied through a cable or conductor bar system.
Battery Power: Some smaller, mobile units may use battery power for added portability.

Applications

Warehousing and Distribution: Efficiently moving and stacking cartons and boxes in storage areas.
Manufacturing: Handling finished products, raw materials, and components within a production facility.
Logistics and Shipping: Loading and unloading trucks, containers, and pallets in shipping and receiving areas.
Retail and E-commerce: Managing inventory in large retail or e-commerce fulfillment centers.

Advantages

Efficiency: Increases productivity by quickly and safely handling large volumes of cartons.
Safety: Reduces the risk of injury associated with manual handling, such as back strain and repetitive motion injuries.
Precision: Allows for precise placement of cartons, which is important for stacking and organizing.
Versatility: Can be adapted to handle various sizes and weights of cartons with the right attachments.
Ergonomics: Minimizes the physical strain on operators, as the crane does the heavy lifting.
