Jib Crane Vacuum Lifter: A Comprehensive Guide to Components, Working Principle, and Applications

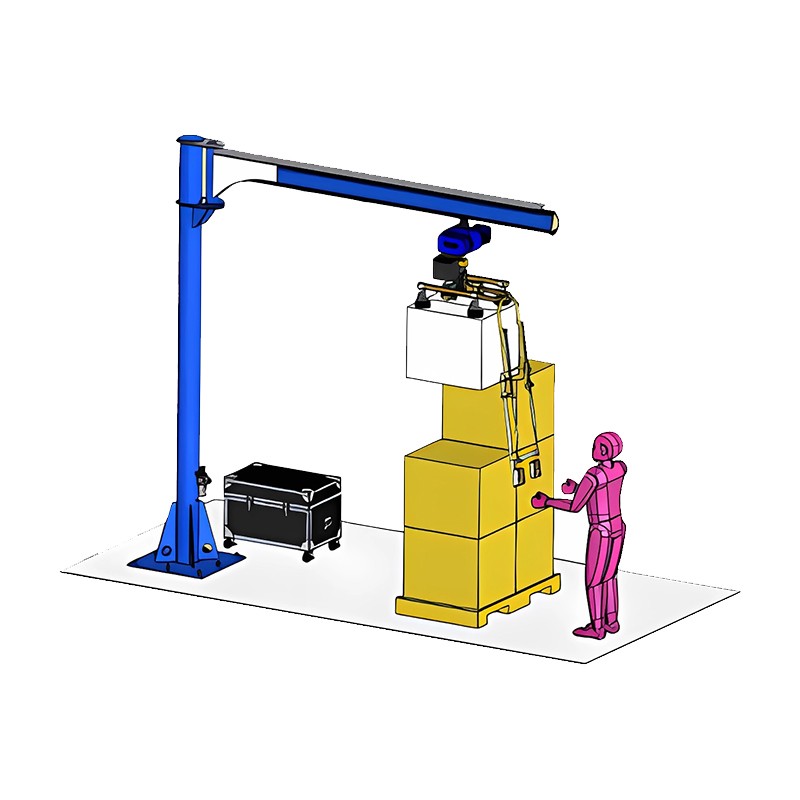

Jib Crane Vacuum Lifter

A jib crane vacuum lifter is a specialized lifting solution that combines the flexibility of a jib crane with the precision and safety of a vacuum lifter. This combination is particularly useful in manufacturing, warehousing, and construction environments where the handling of flat, smooth materials like glass, metal sheets, and plastic panels is required. Here’s a closer look at how this system works and its applications:

Components

A jib crane vacuum lifter typically consists of the following key components:

1. Jib Crane:

• Boom (Jib): An arm that extends outward from a vertical column or wall-mounted structure, allowing horizontal movement.

• Column or Base: The support structure that anchors the crane and allows it to rotate.

• Trolley: Moves along the boom and carries the vacuum lifter unit.

• Rotation Mechanism: Enables the crane to turn, providing full-circle rotation for optimal coverage.

2. Vacuum Lifter:

• Suction Cups: Typically made of durable rubber or synthetic materials, these cups form a seal with the surface of the material being lifted.

• Vacuum Generator: Can be an electric pump or a pneumatic system that evacuates air to create the vacuum.

• Control System: Ensures the correct vacuum level is maintained and includes sensors and switches for safety.

• Release Mechanism: Allows the operator to break the vacuum seal when the material needs to be placed down.

Working Principle

The jib crane vacuum lifter operates by creating a partial vacuum between the suction cups and the surface of the material being lifted. When the suction cups are placed on the material, the vacuum generator is activated, creating a vacuum that holds the material securely. The jib crane then provides the means to lift and move the material within the crane’s reach.

Operation

To use a jib crane vacuum lifter:

1. Positioning: The trolley is moved along the boom until the suction cups are directly above the material to be lifted.

2. Engagement: The suction cups are lowered onto the surface of the material, and the vacuum generator is activated to create the vacuum seal.

3. Lifting: Once the vacuum is established, the material is held securely and can be lifted off the ground.

4. Movement: The jib crane rotates and moves the lifted material horizontally to the desired location.

5. Placement: Upon reaching the target position, the vacuum is released, and the material is gently placed down.

Safety Features

Modern jib crane vacuum lifters often include safety features such as:

• Pressure Sensors: Monitor the vacuum level and alert the operator if it drops below a safe threshold.

• Emergency Release: Provides a quick way to break the vacuum seal in case of emergency.

• Limit Switches: Prevent the crane from rotating beyond its safe operational limits.

• Alarms: Sound warnings if the vacuum level is insufficient.

Applications

Jib crane vacuum lifters are used in various industries and applications:

• Manufacturing: Handling metal sheets, plastic panels, and composite materials.

• Construction: Positioning glass panes, windows, and other building materials.

• Warehousing: Moving flat materials from storage to loading areas.

• Logistics: Loading and unloading flat materials from trucks or containers.

Advantages
