agv material handling carry robot

agv material handling carry robot,agv pallet,agv carts,automated guided forklift,

Robot is a machine which can move automatically. It is also called automated guided vehicles (AGV) or automated material handling vehicle (AMHV). The robotic system consists of two parts: the control system and the mechanical subsystem. The control system consists of sensors, computers, software and power supply. The mechanical subsystem includes the chassis, drive motors and wheels that are used to move around a warehouse or factory floor.

EMAIL

Sell agv material handling carry robot

Are you looking for an automated solution to your material handling needs?


We have a range of options to suit your requirements. From AGV Pallets to AGV Carts and AGV Carriers, we have a solution for your business.


The fully-automated, self-guided AGV Pallet is designed to handle pallets in your warehouse or manufacturing facility. This improved version of the traditional forklift is more efficient and safer than ever before.


The AGV Cart is another option that can be used as an automated material handling system. It can carry loads up to 500kg over distances of up to 100 metres at 1 metre per second. The vehicle can be programmed based on the height and weight of the product being moved, so it travels at the most efficient speed possible.


The automated guided forklift is another great alternative for small businesses who need a cost-effective solution for their material handling needs. These vehicles come with a number of safety features including metal roll cage construction, fall protection systems and sensors that stop them if they come into contact with anything while moving around your warehouse or factory floor


General info

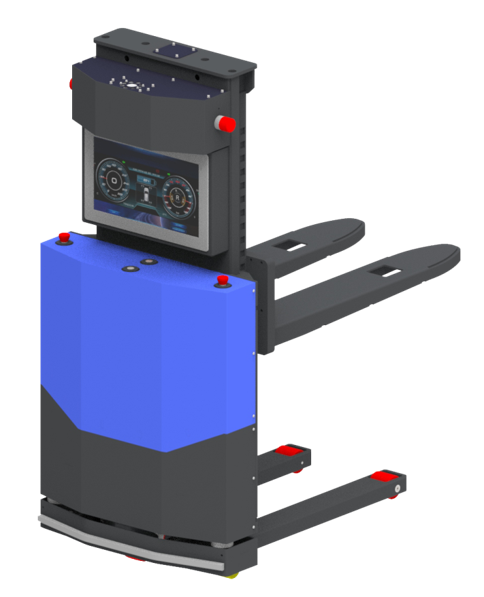

Plane handling forklift AGV, stacking alleyway small width

Fast speed, high operating efficiency, vision + inertia + laser navigation

CAN-open based full servo control system



All-round protection, high navigation accuracy

Intelligent forklift pallet, can be loaded with roller line, robotic arm and other application devices to achieve material gripping, running and other actions.

Plane type forklift truck parameter list

Model

TL-BF-900JG-001

Lifting height (mm)

0-150mm (Customizable)

Lifting load(KG)

1500(customizable

Body size(mm)

L1580*W820*H900

Traveling speed

1.8m/s

Accuracy (mm)

±10mm

Navigation mode

Vision + inertia + laser navigation

Radius of turn(mm)

1500mm

Climbing capacity

5mm

Front and rear laser safety scanner

Three levels of protection

Automatic cargo contour recognition system

Three levels of protection

Contact sensing unit

Mechanical protection

Sound and light warning

Warning protection

Wireless network

Industrial WIFI

System Interface

Reserved for WMS, MES, ERP, central dispatching system expansion port

Battery Type

Nickel-chromium / lead-acid / lithium (power type)

Battery voltage/capacity

Standard use 8 hours, can customize high capacity battery

Charging method

Manual charging/automatic charging/manual power change

Duration of charging

2H

Main engine Color

Can be customized upon request

Service life

10 years
