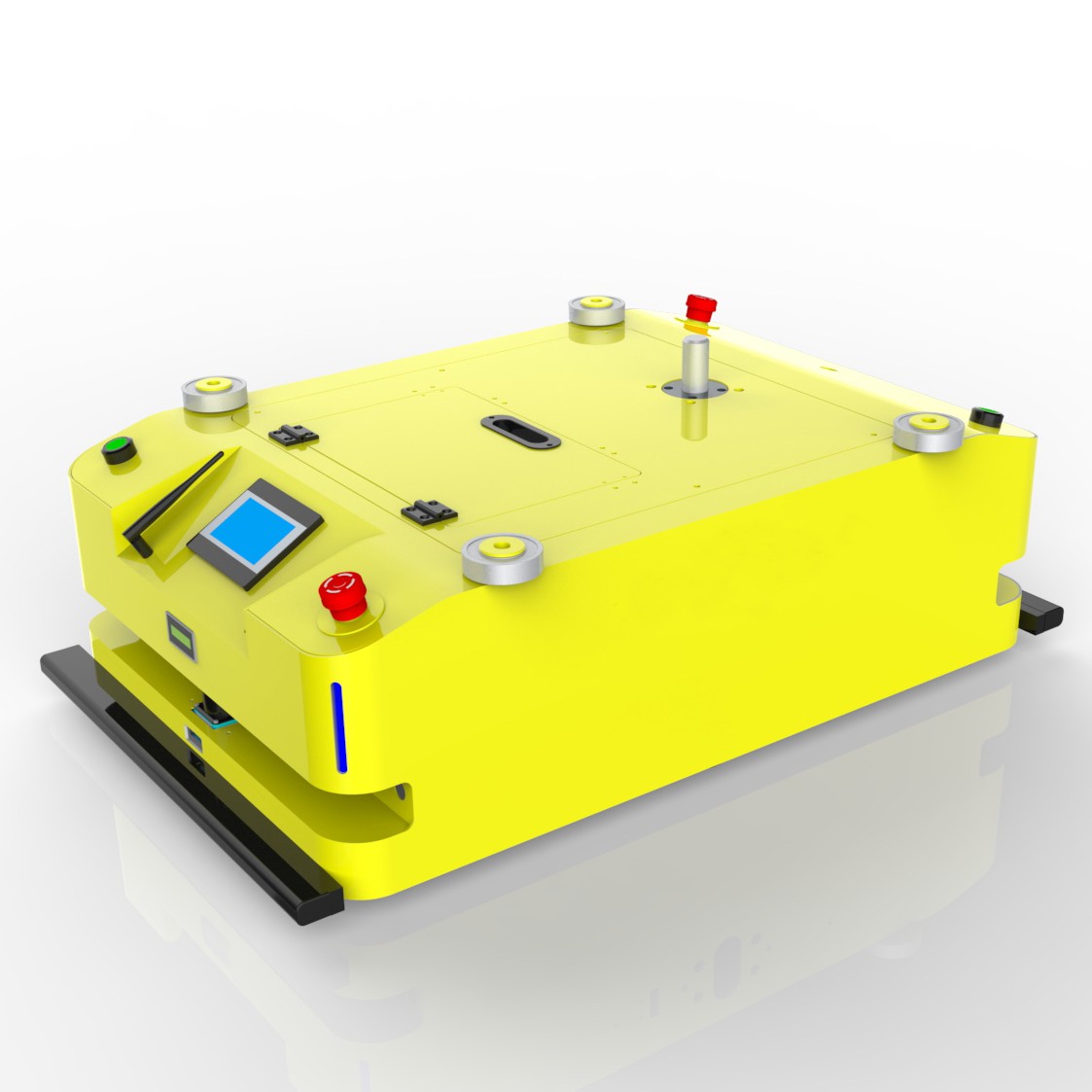

agv automated guided vehicle VL-BF-300SX

The AGV VL-BF-300SX is a single drive automated guided vehicle (AGV).

The AGV VL-BF-300SX is a single drive automated guided vehicle (AGV) designed for high capacity and long distance operation. The AGV VL-BF-300SX features a unique design that allows it to operate in the most demanding environments while maintaining efficiency, reliability and cost effectiveness.

EMAIL

Sell agv automaticed guide vehicles for transport

VL-BF-300SX automated guided vehicle

The AGV VL-BF-300SX is a single drive automated guided vehicle that offers a stable and reliable way to transport goods. The AGV features a stainless steel body, which provides protection from the elements, as well as an anti-corrosion coating for long lasting use.


The VL-BF-300SX can travel at speeds up to 8 km/h, and can carry loads up to 300 kg. It also comes with an optional battery pack that allows it to run for up to 3 hours without needing to be recharged.


The VL-BF-300SX has been designed with safety in mind; it has an emergency stop function, which will automatically shut off power if sensors detect an obstacle or obstruction in its path. The unit also comes equipped with an alarm system that sounds when there is any danger of collision with another object nearby so that you can take precautions immediately before anything happens unexpectedly (such as if someone walks into your warehouse while you're working).

performance parameter

description

Model number

VL-BF-300SX-001

Overall dimension

StandardL895mm*W600mm*H300mmCustomized

Navigation type

Magnetic navigation

Driving form

Differential drive

Running direction

Multi-functional driving such as forward, backward, reverse, bifurcated turn, timed stop, reversing operation, etc

Speed

0~40m/minCustomized

Max Load

100KGCustomized

Gradeability

2Degree

Turning radius

500mmOr in situ90°/180°/360°revolve

Stop precision

±10mm

Navigation accuracy

±10mm

Duration

8-12H(Customized)

Charging mode

Manual charging/automatic charging (optional)

human-computer interaction

4.3Inch touch screen

Types of alarm

Audible and visual alarm

Communication network

WIFINetwork/RF network

Power battery

40AhHigh quality lithium battery

Protection rate

Obstacle sensor+contact bumper+emergency stop button

Design life

>80000H
